 Developed
specifically for a wide range of demanding applications,
Celesco's CLWG series position transducers offer unrivaled
performance in terms of accuracy, repeatability, life
expectancy and ease of mounting. Such applications include
industrial automation, automotive and robotics.
The CLWG uses a twin-bearing actuating rod, backlash-free
pivot heads and a superior wiper system to provide outstanding
linearity and performance.
• Full stroke ranges: 0-3 in. to 0-30 in. (0-75 to 0-750 mm)
• Output signal: voltage divider (potentiometer)
• Linearity: +/-0.04 to 0.1% full stroke
• Repeatability: <0.01 mm
• Resolution: essentially infinite
• Life expectancy: 50 million cycles
• Enclosure material: aluminum

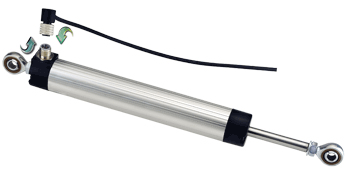

Linear Conductive-Plastic Potentiometer,
Model CLWG
|
