Linear
Conductive-Plastic Potentiometer Model CLWG
Developed
specifically for a wide range of demanding applications,
Celesco's CLWG series position transducers offer unrivaled
performance in terms of accuracy, repeatability, life
expectancy and ease of mounting. Such applications include
industrial automation, automotive and robotics.
|
|
|
|
|
Celesco Linear Potentiometer Model MLP
Celesco's miniature MLP series linear potentiometers offer unrivaled performance in an
amazingly small size. Though small, the MLP is environmentally robust, operates over a broad temperature range and has a cycle life greater than 25
million cycles.
|
|
|
|
|
Compact
String Pot Celesco Model SP2
The SP2 String Pot from Celesco is a compact, economical and water resistant device that utilizes a flexible cable, a spring-loaded
spool and a potentiometer to detect and measure linear position.
|
|
Compact
String Pot Celesco Model SP1
The
Celesco SP1 String Pot is a compact, economical and durable
device that utilizes a flexible cable, a spring-loaded
spool and a potentiometer to detect and measure linear
position.
|
|
Cable-Extension
Position Transducer Model PT9232
The PT9232 delivers position feedback via RS232 serial
communication to your data acquisition or controller system. The PT9232 sends a raw 16-bit count from 0000H to FFFFH. Additionally this
device can be set to continuously send data or send data only when polled.
|
|

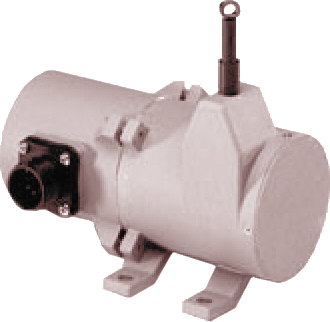

Cable-Extension
Position Transducer Model PT8232
The PT8232 delivers position feedback via RS232 serial communication to your
data acquisition or controller system. The PT8232 sends a raw 16-bit count from 0000H to FFFFH. Additionally, this device can be set to
continuously send data or send data only when polled.
|
|
Celesco
Cable-Extension Position Transducers Model PT101
Celesco
PT101 Cable Extension Position Transducers are
available with full-scale measurement ranges from
2 to 100 inches, providing a voltage feedback
signal that is linearly proportional to the position
of a traveling stainless steel extension cable.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Celesco
Cable-Extension Position Transducers Model PT8101
Industrial
Cable Extension Transducers Celesco Model PT8101,
using a high cycle plastic-hybrid potentiometer,
operates with any basic meter or programmable
controller in factories and harsh environments
requiring linear position measurements in ranges
up to 60 inches.
|
|
|
|
|
Celesco
Cable-Extension Position Transducers Model PT8420
4-20
mA Output Signal Cable Extension Position Transducer
Celesco Model PT8420, with its 4-20 mA feedback
signal, is ideal for monitoring the stroke of
a hydraulic cylinder and other applications requiring
position data acquisition in harsh environments.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Celesco
Cable-Extension Position Transducers Model PT1A
The
PT1A is part of Celesco's compact line of cable-extension
transducers. Using a high cycle plastic-hybrid
potentiometer, the PT1A provides a precision voltage
divider position feedback signal for full-scale
measurement ranges from 2 to 50 inches.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Celesco
Rotational Transducers Model RT8420
4-20
mA Output Rotational Transducer Celesco Model
RT8420 provides extended rotational position feedback
from as little as 1/8 of a turn F.S. all the way
up to 200 turns F.S.
|
|
|
|
|
|
|
|
|
|
|
Celesco
Inclinometer Model IT9101
Inclinometer
Celesco Model IT9101 is a rugged and simple device
which provides a voltage divider feedback signal
for incline position.
|
|
Celesco
Inclinometer Model IT9420
4-20
mA Output Inclinometer Celesco Model IT9420 is
a rugged and simple device which provides a 4
to 20 mA current feedback signal for incline position.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Celesco
Cable-Extension Position/Velocity
Transducers Model PT5AV
Position
and Velocity Transducer Celeco PT5AV is a combination
position and velocity transducer. A precision
plastic-hybrid potentiometer provides accurate
position feedback while a self-generating DC tachometer
provides a velocity signal that is proportional
to the speed of the traveling measuring cable.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Celesco
Redundant Brush System (RBS) PT9000 Series
Designed
for extreme applications where exceptional amounts
of dirt, spray or some other foreign matter may
enter through the standard Redundant Brush System
Celesco Model RBS9000 ‘slot opening’
and interfere with the cable reel mechanism.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Celesco
Cable-Extension Position Transducer Model PT8DN
The PT8DN, using a high cycle plastic-hybrid potentiometer, communicates via DeviceNET® protocol with programmable controllers in factories and harsh environments requiring linear position measurements in ranges up to 60 inches.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
