Thermocouple
Simulators and Calibrators Ectron Model 1120
Thermocouple

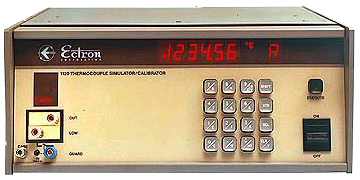

Simulators and Calibrators Ectron Model 1120, simplifies
precise calibration of thermocouple measuring instruments,
includes linear DC calibration capability.
Ectron Thermocouple Simulators produce an emf on their
output terminals exactly duplicating the output of an
actual thermocouple heated to the selected temperature.
Used to calibrate thermocouple measuring instrumentation,
it is only necessary to interconnect the simulator to
the unit under test using thermocouple wire and perform
the calibration.
The microprocessor-based Thermocouple Simulators and Calibrators
Ectron Model 1120 utilizes polynomial transformation to
convert temperature into an exact equivalent thermocouple
emf. As a result, conformity errors are virtually nil.
Ten thermocouple types are offered as plug-in modules,
covering all commonly used materials.
By selecting the millivolts or volts mode, the Thermocouple
Simulators and Calibrators Ectron Model 1120 becomes a
precision dc voltage calibrator.
Thermocouple Applications:
Calibration of:
• Temperature Indicators
• Data Systems
• Temperature Transmitters
• Amplifiers and Linearizers
• Temperature Controllers
• Temperature Alarms
• Temperature Recorders
Linear Applications:
Calibration of:
• DC Digital Voltmeters
• Panel Meters
• Strip Chart Recorders
• Millivoltmeters
• VCO's and Amplifiers
• DC Power Supplies
• Analog to Digital Converters
Features:
• Simulates up to 10 T/C Types
• Key Temperature in Degrees C or F
• Digital Conformity to NBS < 1 microvolts
• Keyable Self Contained Ref. Junctions
• Key Millivolts or Volts Directly
• 0.005% of Reading Accuracy
• Optional IEEE-488 Interface
• Microprocessor Based
Now! ITS-900 per the latest NIST Thermocouple Specifications
Monograph 175
