Thermocouple

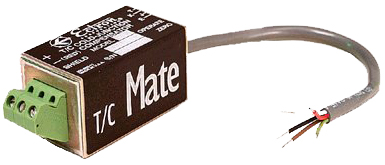

Cold-Junction Compensator Ectron T/CMate Series 200
Thermocouple
Cold-Junction Compensator Ectron T/CMate Series 200 allows
any following instrumentation amplifier to be used as
a thermocouple amplifier with thermocouple input. Ectron
conditioner-amplifiers are ideal.
Thermocouple Cold-Junction Compensator Ectron T/CMate
Series 200 accepts thermocouple signals, provides precision
cold-junction compensation to copper wires, and adapts
the signal for amplification. A jumper allows selection
of the appropriate compensation for four thermocouple
types.
A unique optical isolator provides power for the compensation
circuitry from any 5 to 15 volt dc power source, eliminating
the need for batteries. The strain-gage excitation supply
available from Ectron conditioner-amplifiers provides
ideal power. When connecting to computer I/O cards, the
computer’s 5-V or 12-V supply voltages can be used.
Thermocouple Cold-Junction Compensator Ectron T/CMate
Series 200 Features:
• Precise compensation for type E, J, K and T thermocouples
• Signal isolated from compensation power
• Use any instrumentation amplifier
• No batteries required
• Eliminate long-distance thermocouple wire
