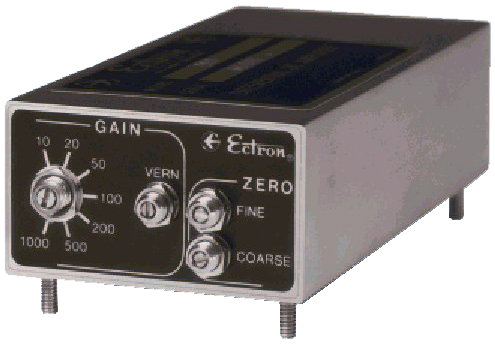

Transducer
Conditioner/Amplifier Ectron Model 416 with a precision
instrumentation amplifier for use in poor environmental
conditions.
Designed for use with almost any transducer, the Transducer
Conditioner/Amplifier Ectron Model 416 provides outstanding
performance despite temperature extremes and high levels
of shock and vibration.
Featuring complete ohmic isolation between the signal
input, output, excitation, power supply and case, it is
a solid state copper-stabilized differential DC amplifier
with an internal excitation voltage supply.
The high input impedance permits operation with a large
variety of signal sources; and the low output impedance
allows operation into highly reactive loads, telemetry
equipment and most recording and/or storage devices.
Standard Features:
• Ruggedized for environmental extremes
• ±10-V amplifier output
• ±40-mV input zero suppression
• Continuous gain in a 1-2-5 sequence from 10 to >2500
• Customer-selectable excitation voltage
• EMI/RFI filtering on all connector pins
• Operation from any DC voltage from +10.5 to +32 V dc
• All units 100% temperature tested over full operating
range
