Four
Channel Differential DC Amplifier Signal Conditioner Ectron
540 Series
Four
Channel Differential DC Amplifier Signal Conditioner Ectron
540 Series is a single plug-in card incorporating 4 independent
direct coupled differential amplifiers with optional strain
gauge signal conditioning.

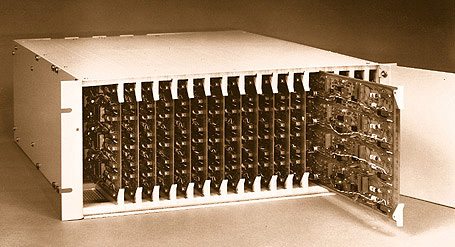

Four Channel Differential DC Amplifier Signal Conditioner
Ectron 540 Series are designed for use as the "front end"
in data logging or data acquisition and other systems
where a large number of channels of amplification and/or
signal conditioning is required.
Each of the 4 channels on a plug-in card is independent
and they are differential direct coupled amplifiers with
connection of guard to input source providing adequate
return path. Each channel may be used inverting, non-inverting,
differential or single-ended. Individual amplifier gain
and filter cut-off frequency, for each channel, is set
by simple plug-in or solder-in components which may be
changed at any time.
Features:
• 4 Channels Per Card
• 64 Channels Per Enclosure
• Bridge Calibration
• Independent Amplifiers
