DC
Differential Amplifier Ectron Model 560H provides amplification
and/or buffering for low and high-level signal sources.
DC Differential Amplifier Ectron Model 560H is directly
interchangeable with the Model 563H Transducer Conditioner
Amplifier and utilizes the same enclosures. Gain is front-panel
selectable from 0.01 to 25 or 1 to 2,500 in 10 calibrated
gain steps in a 1, 2, 5 sequence plus a 2.5 gain vernier.
Selection of gain range is by a board-mounted switch selectable
at ±10V, ±1V or ±100mV.
Amplifier output monitor jacks and LED display of input
offset is also provided. The amplifier bandwidth is DC
to 200 kHz and an optional two pole Bessel filter with
front-panel selectable frequency cut-offs of 10Hz, 100Hz,
1kHz, 10kHz and a wideband position permit user selection
of lower bandwidth.
Features:
• Bandwidth DC to 200kHz
• Selectable 5 step filter
• 100 to 1 input divider
• Gains from 0.01 to 2,500
• 16 channels per 5 1/4" rack mount
• LED indicators for zero offset

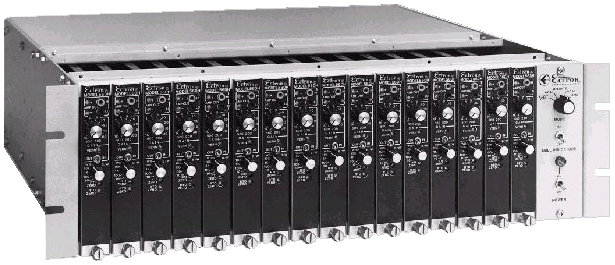

DC Differential Amplifier Ectron
Model 560H
|
