Transducer
Conditioning Amplifier Ectron Model 753A is an AC line
powered plug-in unit containing a high performance differential
DC amplifier, active filter, traditional signal conditioning
functions, which includes transducer excitation, constant
voltage or constant current, balance and calibration with
a front panel plug-in Conditioner Sub-Assembly.
Up to twelve (12) Transducer Conditioning Amplifier Ectron
Model 753A's mount in the E713 19" rack mount enclosure
with rear panel connectors for all inputs, outputs, power
and control.
Transducer Conditioning Amplifier Ectron Model 753A was
specifically designed to accurately process low level
signals in electrically noisy environments.
Precision Differential DC Amplifier:
• 300V Common Mode Voltage
• 140 kHz Bandwidth
• 0.4 microvolt/°C stability, 0.005% linearity
• Five Pole Filter
• Output Zero Indicator
Versatile Transducer Conditioner:
• Isolated Constant Voltage/Current Excitation
• Front-Panel Plug-in Conditioner Assembly
• Ten Wire Transducer Input
• Remotely Controlled Single/Double Shunt Cal
• 12 Units Per 5 1/4" Rack

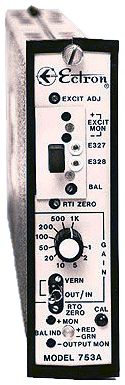

Transducer Conditioning Amplifier
Ectron Model 753A

|
