Transducer
Conditioning Amplifiers Ectron Model 755
|

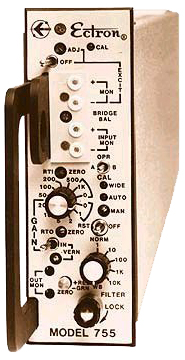

Transducer
Conditioning Amplifiers Ectron Model 755 provide excitation,
signal conditioning and amplification for DC excited,
voltage type transducers.
Transducer Conditioning Amplifiers Ectron Model 755 may
also be used with potentiometric transducers and other
low level signal sources. Each signal conditioning amplifier
is self-contained with individual isolated power supplies
and mounted in a mechanically rugged modular housing.
Ten amplifiers mount in the Model E715 Enclosure, a 19"
RETMA rack mounting assembly with rear panel connectors
for all inputs, outputs, power and control. The signal
conditioning amplifier operates individually or in a multichannel
system.
Transducer Conditioning Amplifiers Ectron Model 755 were
specifically designed to accurately process low level
signals in electrically noisy environments by providing
excellent common mode rejection and EMI immunity.
Outstanding Features Include:
• Plug-in module design; all channels install from the
front of
the enclosure, without rear access
• Each channel configurable to changing input requirements;
one, two and four
arm bridge circuits, as well as RTD's and potentiometers
• Individually isolated, regulated and adjustable constant
voltage/constant
current transducer excitation
• Front panel mounted monitor jacks for input, excitation
and amplifier output
• Bridge completion, balance and calibration resistors
are mounted on a separate
front panel removable plug-in sub-assembly
• The Model 755 was specifically designed to accurately
process low level signals in
electrically noisy environments by providing excellent
common mode rejection
|
|
