Programmable

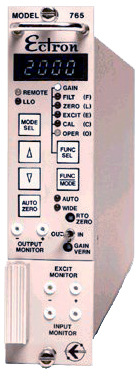

Transducer Conditioning Amplifier Ectron Model 765 (PTCA)
features full remote or front-panel manual control of
virtually every operating function including: several
excitation, signal conditioning and calibration modes,
amplifier input, output, filter and gain modes; and automatic
and incremental zero and bridge balance modes.
Ideal for computer controller data acquisition systems,
the
Programmable Transducer Conditioning Amplifier Ectron
Model 765 PTCA can be used with almost any transducer
from strain gauges, RTDs and potentiometers to thermocouples,
accelerometers and pressure gauges. Its precision amplifier
can also be used for most low-level or high-level signal
sources.
Features:
• IEEE-488 programmable
• Self-contained unit with fully programmable excitation,
signal conditioning, calibration, amplification and filtering.
• Ten (10) wire input accommodates bridge type transducers,
strain gauges, RTDs, potentiometers and other low- and
high-level signal sources
• Gain programmable from 0.01 to 10,000
• Fully isolated excitation power supply programmable
for constant current or constant
voltage, local or remote sense and output level
• Separate auto balance and true autozero
• Ten programmable Butterworth or Bessel filter bandwidths
from 1 Hz to 30 kHz, plus wideband
|
