Wideband
Amplifier/Conditioner Ectron Model 778 is an AC-line-powered,
all-solid-state, high-performance, direct-coupled, wideband
differential DC amplifier with transducer conditioning
and filtering capabilities.
Among the Wideband Amplifier/Conditioner Ectron Model
778 features are excellent linearity, stability, low noise,
extremely fast overload recovery and unique high-frequency
common-mode rejection.
Features:
• DC to 3 MHz Bandwidth
• Gains 0.3 to 1,000
• 1.2 microsecond Overload Recovery
• 300 V Common-mode Voltage
• 120 dB CMR DC to 100 kHz, 80 dB to 5 MHz
• 35 V/microsecond Slew Rate
• 7-Step 4-Pole Low-pass Filter
• Bridge Conditioner, Excitation Supply

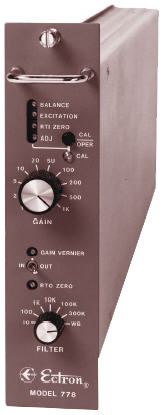

Wideband Amplifier/Conditioner
Ectron Model 778
|
