Ectron
Shortform Catalog
Instrumentation for Data Acquisition and Calibration,
Environments from Laboratory to Deep Space, Airborne
to Industrial. A must read for every test instrumentation
lab.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Ectron
Model 441AL
Precision Frequency-To-Voltage Converter
The Model 441AL produces an analog output that precisely represents the frequency of an applied input signal. Signal conditioning within
the instrument allows the frequency-determining algorithm to precisely follow the input signal frequency changes.
|
|
Ectron
Model 451
Precision LVDT Conditioner
Precision LVDT Conditioner Ectron Model 451
is a unique advance in conditioners for LVDT and
RVDT transducers. For the first time, the conditioner
can be calibrated to the transducer without using
a costly and time consuming laboratory procedure.
|
|
|
|
|
|
|
|
Ectron
Model 563H
Transducer Conditioning Amplifier
Transducer Conditioning Amplifier Ectron Model
563H provides excitation, balance, calibration
and amplification for once, two or four-arm bridge-type
transducers and other low and high-level signal
sources.
|
|
|
|
|
Ectron

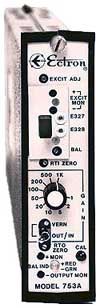

Model 753A
Transducer Conditioning Amplifier
Transducer Conditioning Amplifier Ectron Model
753A is an AC line powered plug-in unit containing
a high performance differential DC amplifier,
active filter, traditional signal conditioning
functions, which includes transducer excitation,
constant voltage or constant current, balance
and calibration with a front panel plug-in Conditioner
Sub-Assembly.
|
|
|
|
|
Ectron
Model 765
Programmable Transducer Conditioning Amplifier
Programmable Transducer Conditioning Amplifier
Ectron Model 765 (PTCA) features full remote or
front-panel manual control of virtually every
operating function including: several excitation,
signal conditioning and calibration modes, amplifier
input, output, filter and gain modes; and automatic
and incremental zero and bridge balance modes.
|
|
Ectron
Model 778
Wideband Amplifier/Conditioner
Wideband Amplifier/Conditioner Ectron Model
778 is an AC-line-powered, all-solid-state, high-performance,
direct-coupled, wideband differential DC amplifier
with transducer conditioning and filtering capabilities.
|
|
|
|
|
|
|
|
Ectron
Model 1140A
Thermocouple Simulator/Calibrator
The Model 1140A has the highest accuracy and most economical price of all
the models ever released by Ectron. The Model 1140A has 0.05°C accuracy for
common thermocouple types including cold-junction compensation. Moreover,
the Model 1140A offers dc accuracy of 0.0025% + 0.75 µV for 6 months, in
both source and measure modes
|
|
