GP:50

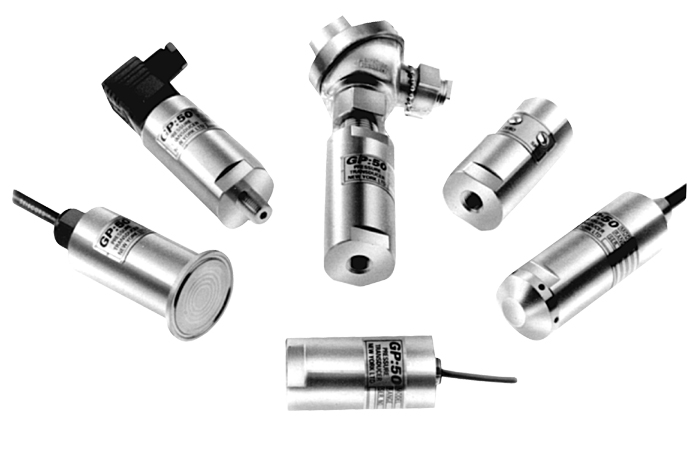

Pressure Transducer/Transmitter General Purpose Models
111, 211, 311
Pressure
Transducer/Transmitter General Purpose Models 111, 211,
311
Features:
• Rugged all Stainless Steel Welded Construction
• Accuracies from 0.5% to 0.1% FSO
• Option for Submersible Operation to 10 psi
• FM Explosion Proof Approved
• Bonded Strain Gauge, Full Bridge Construction for Temp.
Stability and Pressure Transient
• Special Engineering Options Including Flush Mounting,
Temp. Extremes & Connector Options
Pressure Ranges: From 0-5 through 0-15,000 psi
• Model 111: Output @ 70°F: 3 mV/V ±2% FSO
• Model 211: Output @ 70°F: 0- ±5 VDC ±2% FSO
• Model 311: Output @ 70°F: 4-20 mA ±2% FSO
