Plastic

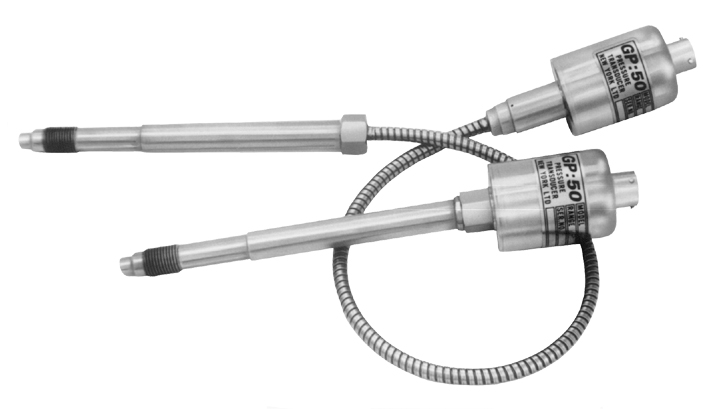

Melt Pressure Transducer/Transmitter, Models 130 & 131,
230 & 231, 330 & 331
The GP:50 product line of Plastic Melt Pressure Transducers
and Transmitters are based on the proven bonded strain
gauge principle successfully utilized in thousands of
applications. Our unique design incorporates a heavier
sensor allowing a thicker tip diaphragm, provides better
linearity and reduces costs.
Features:
• Rugged, All-Welded, All Stainless Steel Construction
• Interchangeable With Existing Systems
• Many Options Available, Hastelloy C-276 or Boron - Hardening
• Explosion-Proof Ratings Available
Pressure Ranges:
• From 0-500 Through 0-30,000 psi
Accuracy:
(Non-Linearity, Hysteresis, Non-Repeatability)
• ±0.25% FSO, RSS (0-5,000 psi & Higher)
• ±1% FSO, RSS (0-500 and 0-3,500 psi)
• Model 130/131: Output @ 70°F: 3.33 mV/V ±2%
• Model 230/231: Output @ 70°F: 5.0 VDC ±2%
• Model 330/331: Output @ 70°F: 4-20 mA ±2%
