 Low

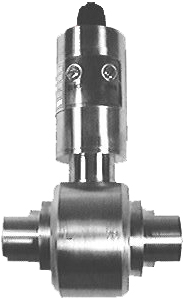

Range, High Line Differential Pressure Transducer/Transmitter
Models 216, 316
Features:
• Wet-Wet DP Measurement
• Full Line Pressure Overload
• Small Size
• Type 316 Stainless Steel All-Welded Construction
• NEMA 4 Rated Enclosure
• Attractively Priced
• Zero and Span Adjustment Standard
Pressure Ranges:
• From 0-5 to 0-2,000 in. wcd and 0-1 to 0-200 psid
• Bi-Directional Output Available Upon Request
Line Pressure:
• 2,000 psi Standard, Others Available
Accuracy:
• To ±0.1% FSO (RSS)
• Model 216: Output @ 70°F: 0- ±5 VDC FSO
• Model 316: Output @ 70°F: 4-20 mA FSO
Low Range, High Line Differential
Pressure Transducer/Transmitter
|
