The GP:50 product line of melt pressure transducers and transmitters is based on the proven bonded strain gauge principle
successfully utilized in thousands of applications. G:50's unique design incorporates a heavier sensor allowing a
thicker tip diaphragm, provides better linearity, and reduces costs.
The design incorporates an extremely small capillary tubing that transmits the media pressure to the strain gauge
sensor and mating electronics via a mechanical fill fluid. (Mercury is the standard, silicone and mineral oil are
readily available depending on the application).

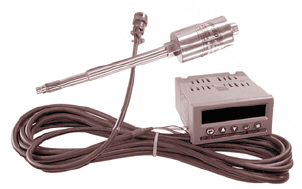

GP:50 Melt-Kits come with everything you need for efficient and reliable extrusion pressure measurement. Melt-Kits
include transducer, cable, indicator and more.
Ideal for processors currently measuring pressure
• Model 30 pressure transducer
• 1211-B-B-1-R melt pressure indicator
• MECA-CA connecting cable
• MHK-AA transducer mounting hole machining tool kit
• Getting started guide
• Tube of anti-sieze compound
• Screwdriver
• GP:50 baseball hat
Classic Melt-Kit
Ideal for processors currently using blow plugs
• Model 30 or Model 31 transducer
• 1211-B-B-1-R melt pressure indicator
• MECA-CA connecting cable
• Getting started guide
• Tube of anti-sieze compound
• Screwdriver
• GP:50 baseball hat
Temperature/Pressure Melt-Kit
Ideal for processors with temperature and pressure measurement requirements
• Model 35 temperature/pressure transducer
• 1290 Indicator
• MECA-CA connecting cable
• MTC-AA thermocouple connector
• Getting started guide
• Tube of anti-sieze compound
• Screwdriver
• GP:50 baseball hat

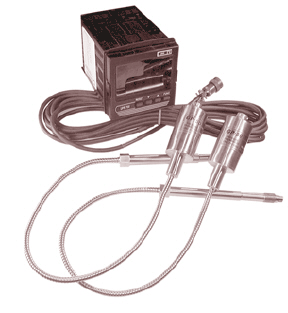

Differential Melt-Kit
Ideal for processors who measure and control differential pressure
• Two 131 or two 331 pressure transducers
• 1235 process controller
• Two MECA-CA connecting cables
• Getting started guide
• Tube of anti-sieze compound
• Screwdriver
• GP:50 baseball hat
