GP:50 Pressure Transducer and Transmitter

GP:50 Pressure Transducer and Transmitters Short Form Brochure Intertechnology can configure a GP:50 unit for almost any application. With numerous pressure port and electrical output options, we can offer standard cavity-style, flush mount, submersible, high range, low range, and even smaller size units to suit general or special purpose applications.
GP:50 Plug-On Display With One Relay Model LD1001 The LD1001 plug-on display is a universal local display with an adjustable set point, suitable for use with any GP:50 4-20 mA, 2 wire transmitter. Removing the front cover of the display will reveal 2 programming buttons. These are used to input the desired settings for the following parameters: Zero, scale, decimal point position, damping and switching point. The LD1001 is factory set up when ordered with a transmitter for easy field installation.
GP:50 Aerospace/Ground Support Precision Pressure Transducer/Transmitter Models 142, 242, 342 Developed specifically for the harsh operating environments encountered in ground support testing, these units feature the latest blend of mechanical and circuit technology to achieve superior ruggedness, accuracy, and fatigue life.
GP:50 Flange Mounted Pressure Transmitter & Temperature Probe Models 335, 435 with FX, FY Option Pressure Ranges: • From 0-25 to 0-10,000 psig Accuracy: • 0.5% FSO standard, 0.25% FSO available • 0.15% FSO available on Models 435

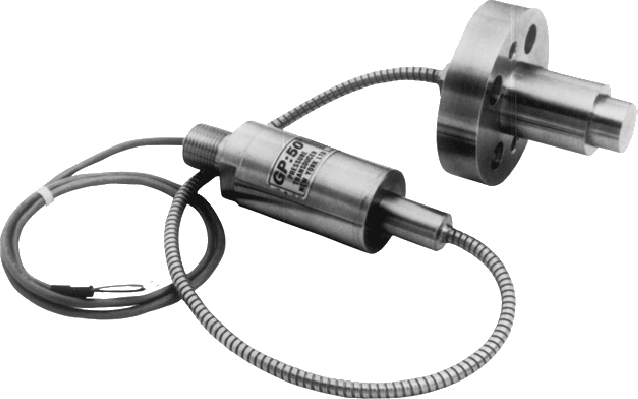

GP:50 Flange Mounted Low Pressure Transmitter Models 330X, 331X, 430X, 431X with FX, FY Option Pressure Ranges: • From 0-25 to 0-10,000 psig) Accuracy: • 0.5% FSO standard, 0.25% FSO available • 0.15% FSO available on Models 430X, 431X

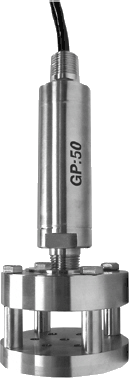

GP:50 Submersible/Level "Standoff" Pressure Transducer/Transmitter Model 311-M351 Pressure Ranges: • From 0-5 to 0-500 psi Accuracy: • 0.5% FSO standard, 0.25% available
GP:50 Flange Mounted Melt Pressure Transmitter Models 230X, 231X, 330X, 331X, 330Z, 331Z with IE Option Pressure Ranges: • 0-500 to 0-30,000 psi Accuracy: • 0.5% FSO (ranges 500 to 3,000 psi • 0.25% FSO (ranges 5,000 to 30,000 psi)
GP:50 Smart Rangeable Pressure Transmitter Model 471 This rugged, harsh-environment transmitter is small in size and designed to solve your worst weather nightmare. GP:50 Model 471 features HART communications protocol and microprocessor based electronics in a small, rugged package. HART communication allows simpler system commissioning and start up, while digital compensation provides enhanced accuracy and rangeability.
GP:50 Smart Rangeable Melt Pressure Transmitter Models 430, 431, 430X, 431X Pressure Ranges: From 0-500 through 0-30,000 Accuracy: (Non-Linearity, Hysteresis, Non-Repeatability) • ±0.15% FSO, RSS (0-5000 psi & higher) • ±0.2% RSO, RSS (0-3000 psi & lower)

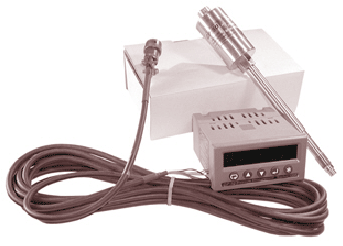

GP:50 Smart Rangeable Melt Pressure Transmitter Kits The GP:50 product line of melt pressure transducers and transmitters is based on the proven bonded strain gauge principle successfully utilized in thousands of applications. G:50's unique design incorporates a heavier sensor allowing a thicker tip diaphragm, provides better linearity, and reduces costs. The design incorporates an extremely small capillary tubing that transmits the media pressure to the strain gauge sensor and mating electronics via a mechanical fill fluid. (Mercury is the standard, silicone and mineral oil are readily available depending on the application). GP:50 Melt-Kits come with everything you need for efficient and reliable extrusion pressure measurement. Melt-Kits include transducer, cable, indicator and more.
GP:50 Submersible/Level Pressure Transducer/Transmitter Models 1102, 1103 Pressure Ranges: From 0-15 to 0-500 psig • Model 1102: Output @ 70°F: 0-5 VDC ±2% FSO • Model 1103: Output @ 70°F: 4-20 mA ±2% FSO
GP:50 General Purpose Transducer/Transmitter Models 111, 211, 311 Pressure Ranges: From 0-5 through 0-15,000 psi • Model 111: Output @ 70°F: 3 mV/V ±2% FSO • Model 211: Output @ 70°F: 0- ±5 VDC ±2% FSO • Model 311: Output @ 70°F: 4-20 mA ±2% FSO
GP:50 Low Pressure Transducer/Transmitter Models 210, 310 Pressure Ranges: • From 0-5" WC Through 0-200 psi
GP:50 High Pressure Transducer/Transmitter Models 112, 212, 312 Pressure Ranges: • From 0-20,000 psi to 0-150,000 psi • From 0-1,500 bar to 0-10,000 bar
GP:50 Submersible/Level Pressure Transducer/Transmitter Models 113, 213, 313 Pressure Ranges: • From 0-15 to 0-500 psi
GP:50 Submersible/Level Pressure Transducer/Transmitter Model 313L Pressure Ranges: • From 0-3 through 0-15 psig
GP:50 Differential Pressure Transducer/Transmitter Models 115, 215, 315 Pressure Ranges: • From 30 to 5,000 psid • From 2 to 300 bar • Bi-Directional Available
GP:50 Low Range, High Line Differential Pressure Transducer/Transmitter Models 216, 316 Pressure Ranges: • From 0-5 to 0-2,000 in. wcd and 0-1 to 0-200 psid • Bi-Directional Output Available Upon Request
GP:50 Very High Differential Pressure Transducer/Transmitter Models 114, 214, 314 Pressure Ranges: • From 500 to 20,000 psid
GP:50 Spike Series Pressure Transducer/Transmitter Pressure Ranges: • From 0-100 to 0-15,000 psig
GP:50 General Purpose Pressure Transducer/Transmitters Models 1002, 1003 Pressure Ranges: • From 0-15 to 0-10,000 psi • Model 1002: Output @ 70°F: 0-5 VDC ±2% FSO • Model 1003: Output @ 70°F: 4-20 mA ±2% FSO
GP:50 Multi-Range Process Pressure Transducer Model 1171 Features: • 5 Through 100,000 psi Ranges in PSISG, PSIA, Vacuum Options • 4-20 mA Loop Powered • 5:1 Ranging • Waterproof
GP:50 General Purpose Flush Diaphragm Pressure Transducer/Transmitter Models 117, 217, 317 Pressure Ranges: • From 0-50 to 0-10,000 psi
GP:50 Sanitary Flush Diaphragm Pressure Transducer/Transmitter Models 280 & 283, 380 & 383 Pressure Ranges: • From 0-20" wc to 0-1,000 psi
GP:50 Sanitary Flush Diaphragm Pressure Transducer/Transmitter Models 218, 318 Pressure Ranges: • From 0-20" wc Through 0-1,000 psi
GP:50 Sanitary Flush Diaphragm Pressure Transducer/Transmitter Models 181, 281, 381 Pressure Ranges: • From 0-100 psig to 0-20,000 psig
GP:50 Plastic Melt Pressure Transducer/Transmitter Models 130 & 131, 230 & 231, 330 & 331 The GP:50 product line of Plastic Melt Pressure Transducers and Transmitters are based on the proven bonded strain gauge principle successfully utilized in thousands of applications.
GP:50 Low Pressure Transducer/Transmitter Models 126, 226, 326, 127, 227, 327 Pressure Ranges: • From 0-25 to 0-1,000 psig
GP:50 High Pressure Transducer/Transmitter Models 132, 232, 332 Pressure Ranges: • From 0-500 To 0-30,000 psig
GP:50 Transducer/Transmitter & Temperature Probe Models 135, 235, 335 Features: • Pressure & Temperature Measurement From A Single Mounting Well • Rugged, All-Welded, All Stainless Steel Construction • Interchangeable With Existing Systems • Adjustable Calibration Signal Option
GP:50 Aerospace Division Flight Qualified Low Pevel Pressure Transducer Model 7100 The Model 7100 Fight Qualified Low Level Pressure Transducer is designed for the tough challenges and environ- mental rigors of Space Propulsion and Aviation pressure testing applications.
GP:50 Aerospace Division Flight Qualified High Level Pressure Transducer Model 7200 The Model 7200 Fight Qualified High Level Pressure Transducer is designed for the tough challenges and environmental rigors of Space Propulsion and Aviation pressure testing applications.
GP:50 Aerospace Division Flight Qualified Differential Pressure Transducer Model 7300 The Model 7300 Aerospace Flight Differential Pressure Transducer is designed for the tough challenges and environmental rigors of Space Propulsion and Aviation pressure testing applications.
GP:50 Aerospace Division Aerospace Differential Pressure Transducer Model 7400 The Model 7400 Aerospace Differential Pressure Transducer is designed for the tough challenges and environmental rigors of Space Propulsion and Aviation pressure testing applications.
GP:50 Aerospace Division Submersible Pressure Transducer Model 7500 The Model 7500 Ocean Submersible Pressure Transducer is designed for the tough challenges and environmental rigors of Oilfield, Downhole and Deep Sea Ocean applications.
GP:50 Aerospace Division Analog Output Temperature (Model 7800) & Dual Temperature/Pressure Transducers (Model 7880) The Analog Output Temperature (Model 7800) & Dual Temperature/Pressure Transducers (Model 7880) are designed for the tough challenges and environmental rigors of Space Propulsion and Aviation temperature testing applications.
GP:50 Aerospace Division Flight, In-flow Miniature Pressure Transducer Model 7900 The Model 7900 Aerospace In-Flow Miniature Pressure Transducer is designed for the tough challenges and environmental rigors of Space Propulsion and Aviation pressure testing applications.
