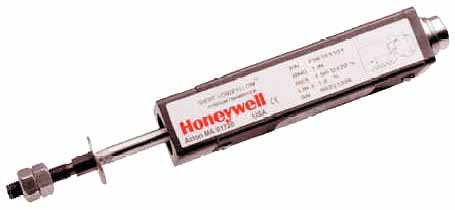

 The new Longfellow II Linear Position Transducer incorporates
design innovations to increase transducer life and provide
greater resistance to vibration, while providing a smooth
high quality signal for the most demanding factory control
applications. It has a solid stainless steel shaft, longer
front-end bearings, a vibration-free damped element, a
spring-loaded ball joint and a high precision precious
metal wiper. Carrier guides extruded the full length of
the housing insure smooth operation even under severe
side load conditions. The Longfellow II Linear Position
Transducer is a direct drop-in replacement for existing
Waters, Data Instruments, Novotechnik, Gefran or Sfernice
units. The newly designed internal components provide
improvements which were developed after worldwide testing
and field experience.
Features:
• Vibration damped element
• Spring-loaded ball joint on wiper assembly
• Extruded wiper carrier guides
• Precious metal wipers
• Shaft seals
• MystR plastic elements
• High DC level output
• High performance bearings
• Absolute continuous measurement
Longfellow II Linear
Position Transducer
|
