Data
Instruments Honeywell Longfellow II Linear Position
Transducer
The
new Longfellow II Linear Position Transducer incorporates
design innovations to increase transducer life
and provide greater resistance to vibration, while
providing a smooth high quality signal for the
most demanding factory control applications. It
has a solid stainless steel shaft, longer front-end
bearings, a vibration-free damped element, a spring-loaded
ball joint and a high precision precious metal
wiper.
|
|
Data
Instruments Honeywell Short Longfellow Linear
Position Transducer
The
Short Longfellow Linear Position Transducer is
frequently used for measuring linear position
or displacement up to 6" on a wide variety of
manufacturing and process equipment. The mechanical
design of the unit's front bearing, anodized extruded
aluminum housing, stainless steel shaft and precious
metal wipers are suitable for a factory's harsh
environment.
|
|
Data

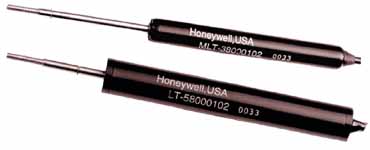

Instruments Honeywell Models LT/MLT Linear Position
Transducers
Linear
Position Transducers Models LT and MLT are small
diameter linear position transducers rugged enough
to withstand the hostile environment of the factory.
Using a proprietary dual wiper, internal ball
joint and the MystR® conductive plastic film,
the MLT provides usable output at high vibration
levels for long periods.
|
|
Data
Instruments Honeywell Model M-22
Rotary Position Transducer
The
M22 Rotary Potentiometer, available in servo and
bushing mount, utilizes wear resistant MystR®
conductive plastic film combined with precious
metal wipers to produce a quiet operating, low
noise, stable signal. The M22 Series potentiometers
are used in position sensing applications which
demand high reliability at low cost.
|
|
Data
Instruments Honeywell MediaMate Pressure Transducer
The
Mediamate® pressure transducer provides you
with the corrosion resistance of stainless steel
at low OEM pricing. It is fully compensated and
completely interchangeable without further calibration.
The Mediamate's wetted parts and outer case are
made from 300 series stainless steel. It is now
being used with a wide variety of corrosive media
such as Freon®, ammonia,
water and hydraulic fluids.
|
|
Data
Instruments Honeywell Models EA & EAF Pressure
Transducers
The
EA is designed for OEM uses requiring high output
and corrosion-resistance. It is well-suited for
the cycling regimes found in automatic equipment,
robots and hydraulic systems. Its pressure port,
amplifier and voltage supply regulator are packaged
in a Valox case. The EAF outputs a low frequency
digital signal which is ideal for electrically
noisy environments as well as applications requiring
long distance signal transmission or an interface
to a microprocessor. The output signal is a frequency
modulated square wave set from 1 to 6 kHz.
|
|
Data
Instruments Honeywell Model SA Harsh Duty Pressure
Transducer
The
harsh duty SA pressure transducer has a water
resistant, stainless steel case for complete protection
from harsh environments. Internal hermetic sealing
is used to provide measurement of absolute pressures
(PSIA) or pressures referenced to a sealed chamber
(PSIS). The SA produces a high level voltage output
of 1-6V output from an unregulated supply.
|
|
Data
Instruments Honeywell XPRO Low Cost Pressure Transmitter
The
XPRO pressure transmitter provides both the instrument
engineer and OEM designer with a reliable and
affordable measurement. The 4-20 mA output signal
is particularly suited for long cable runs in
electrically noisy environments. The XPRO is recognized
by Underwriters Laboratories as an intrinsically
safe device for use in hazardous locations.
|
|
Data
Instruments Honeywell Models EA-BD & SA-BD Bidirectional
Pressure Transducers
The
EA-BD and SA-BD Pressure Transducers sense pressure
above and below atmospheric pressure without using
a vacuum reference chamber. The transducers give
a 1 VDC output at a set negative pressure. Their
output signal is 1-6 VDC. EA-BD's are gauge models
and SA-BD's are sealed. They find wide use in
applications where pressures can go from below
atmospheric to considerably above - such as in
medical respirators or refrigeration.
|
|
Data
Instruments Honeywell Model BL
Pressure Transmitter
The
BL pressure transmitter has a conventional 4-20
mA output and is available with accuracy's to
0.25%. It has Factory Mutual approval as an intrinsically
safe device for use in hazardous areas Class I,
Division I, Groups A through G. All PSIS or PSIA
BL's are hermetically sealed. The pressure sensitive
diaphragm is either 316L or 15-5PH stainless steel,
depending on the pressure range selected.
|
|
