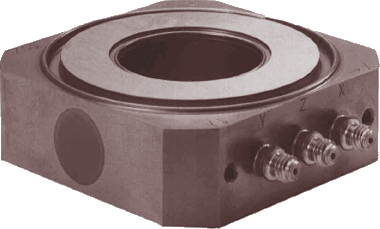

Models 9067, 9068, 9066A4, 9067A4 3-Component Force Sensor
The force sensor contains 3 pairs of quartz
rings which are mounted between two steel plates in the sensor housing.
Two quartz pairs are sensitive to shear and
measure the force components Fx and Fy, while one quartz pair sensitive to pressure measures the component Fz of a force
acting on the sensor. The electrical charges proportional to the different components are led via electrodes to the
corresponding connectors.
The quartz packet is protected by the stainless, tightly welded sensor housing. The latter
has two fine-machined reference faces parallel to the y-axis. These faces can be used to position the sensor and consequently
the coordinate system.
• Cutting forces
• Impact forces
• Reaction forces in rockets
• Dynamic forces on shakers
• Determination of coefficients of friction
