Kistler
Model 9712 High Impedance Load Cells
The 9712B series of force sensing load cells measure dynamic
events in a wide variety of applications. Availabl in five measuring ranges from 5 lbf. to 5,000 lbf. and contained
in a convential load cell style housing, all models are capable of measuring compression and tension forces.
|
|
Kistler
Models 9212, 9222 High Impedance Load Cells
The 9212 and 9222 are force sensing load
cells that measure quasi-static and dynamic events in a wide variety of applications. Available in two different load cell
style housing configurations (hex and square), the 9212 has a 50 pC/lbf. sensitivity while the 9222 has 19 pC/lbf.
|
|
Kistler
Models 9251A, 9252A, 9250A4, 9251A4 3-Component
Force Sensor
The force sensor contains 3 pairs of quartz rings which
are mounted between two steel plates in the sensor housing. Two quartz pairs are sensitivie to shear and measure the force
components Fx and Fy, while one quartz pair sensitive to pressure measures the component Fz of a force acting on the
sensor. The electrical charges proportional to the different components are led via electrodes to the corresponding connectors.
|
|
Kistler

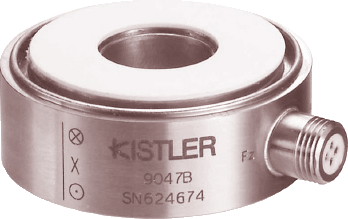

Models 9047B, 9048B, 9046B4 3-Component Force
Sensor
Two quartz pairs are sensitivie to shear and measure the force
components Fx and Fy, while one quartz pair sensitive to pressure measures the component Fz of a force acting on the sensor.
The electrical charges proportional to the different components are led via electrodes to the corresponding connectors.
|
|
Kistler
Models 9067, 9068, 9066A4, 9067A4 3-Component
Force Sensor
Two quartz pairs are sensitive to shear and
measure the force components Fx and Fy, while one quartz pair sensitive to pressure measures the component Fz of a force
acting on the sensor. The electrical charges proportional to the different components are led via electrodes to the
corresponding connectors.
|
|
Kistler

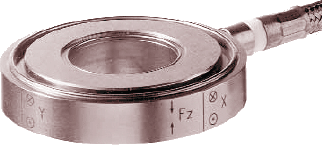

Models 9167A, 9168A, 9167AB, 9168AB 3-Component
Force Sensors
Two quartz rings are sensitive to shear and
measure the force components Fx and Fy, while a pair of quartz rings sensitive to pressure measures the component Fz of a
force acting in any direction on the sensor. The electrical charges yielded proportionally to the different components
are led via electrodes to the corresponding connector contacts.
|
|
Kistler
Models 9067B, 9068B, 9066B4 3-Component Force
Sensor
Two
quartz pairs are sensitive to shear and measure the force
components Fx and Fy, while one quartz pair sensitive
to pressure measures the component Fz of a force acting
on the sensor. The electrical charges proportional to
the different components are led via electrodes to the connectors.
|
|
Kistler
Models 9077B, 9078B, 9076B4 3-Component Force
Sensor
Two quartz pairs are sensitive to shear
and measure the force components Fx and Fy, while one quartz pair sensitive to pressure measures the component Fz of a force acting on the
sensor. The electrical charges proportional to different components are led via electrodes to the corresponding connectors.
|
|
Kistler
Models 9101A, 9102A, 9103A, 9104A Industrial Force
Sensors
For monitoring of industrial processes, force sensors are
required, which can be easily installed in machinery. Robust design and reliability during continuous operation together with
good repeatability of the measured values are additional characteristics of these sensors.
|
|
Kistler
Model 9203 Quartz Force Sensor
This highly sensitive transducer is suitable for measuring quasistatic and
dynamic tensile and compressive forces ranging from a few mN to 500 N. The special advantages of this transducer lie in
its very high sensitivity, high frequency and small dimensions. Especially when measuring very small quasistatic forces it
is necessary to ensure that the transducer is not exposed to temperature changes during the measurement.
|
|
Kistler
Model 9207 Quartz Force Sensor With High Sensitivity
The Model 9207 is a quartz force sensor with high sensitivity for
measuring quasistatic and dynamic tensile and compressive forces in the range of less than 1 mN to 50 N. High rigidity, very
small transverse sensitivity and minimum sensitivity to thermal influences are outstanding features of this sensor, which
is therefore suited for general applications. The sensor is mounted in a bore with a M10x1-thread and the force introduced
at its front end.
|
|
Kistler
Models 9211, 9211A1 Quartz Miniature Force Sensor
Miniature quartz force sensor for measuring
dynamic and quasistatic forces from a few mN to 2500 N. Very high resolution, high natural frequency, very small dimensions,
welded construction. High temperature cable tightly attached to sensor case.
|
|
Kistler

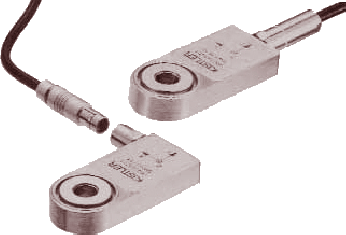

Model 9602 Force Sensor With Integrated Electronics
The sensor is suitable for indirect force measurement
(force shunt mode) as well as for direct measurements in the main force flux. The force sensor produces an amplified, low-
impedance force-proporational voltage signal which can be directly processed by machine control systems, for example. The
sensor connection is made via a multiple cable which can be a plug-in or integrated type.
|
|
Kistler
Models 9333, 9343, 9363 Press Force Sensor
These ready-to-use piezoelectric force
sensors are particularly suitable for measuring rapidly changing compression forces in presses. The press force sensors are
supplied calibrated and can be mounted in various ways. Three sizes (with maximum measuring range of 50, 70 and 120 kN
respectively) are available.
|
|
Kistler
Model 9211AAE Quartz Miniature Force Sensor
Miniature quartz force sensor for measuring
dynamic and quasistatic pressures in the mold in injection molding via an ejector or measuring pin. Very high resolution,
high natural frequency, very small dimensions, welded construction.
|
|
Kistler
Models 9213, 9213A1 Quartz Miniature Force Transducer
Miniature quartz force transducer for measuring
dynamic and quasistatic forces from a few mN to 2500 N. Very high resolution, high natural frequency, very small dimensions,
welded construction. High temperature cable tightly attached to transducer case.
|
|
Kistler
Model 9205 Quartz Force Transducer With High Sensitivity
Quartz force transducer with high sensitivity
for measuring quasistatic and dynamic tensile and compressive forces in the range of less than 1 mN to 50 N. High rigidity,
very small transverse sensitivity and minimum sensitivity to thermal influences are outstanding features of this transducer,
which is therefore suited for general applications.
|
|
Kistler
Model 9601A VarioCOMP Multicomponent Force Sensor
Multi-component, quartz
force sensor for use in industry. The sensor can optionally be supplied with 1, 2 or 3 measuring axes.
Various versions of connector outlet and the integrated cable provide optimum conditions for attachment
to the equipment tested.
|
|
Kistler
Models 9301B, 9371B Quartz Force Links
The force sensor is mounted under preload
between two nuts and, therefore can measure compression and tensile forces. The quartz element yields an electric charge
which is proportional to the force. This is picked off by an electrode and transferred via a connector.
|
|
Kistler
Models 9173B, 9174B, 9175B, 9176B SlimLine Quartz
Force Links
Compact force link for measuring tension
and compression forces. A SlimLine sensor (SLS) Type 9133B21 to 9136B21 is fitted under preload and ground-insulated
between two steel parts with threads. The integral cable is additionally protected by a Viton cable covering. Already
calibrated (only compression force range), the SLS force links are easy to install and are immediately ready for
measurement.
|
|
Kistler
Models 9301B ... 9372A Quartz, High Impedance,
Charge Mode Force Links
The 9300 Series quartz force links measure
dynamic and short-term static compression and tension forces with near infinite resolution. Extremely small forces throughout
the total range can also be measured with great accuracy. Tension or compressive tare components may be eliminated prior to
making measurements by simply activiting the reset switch function located on the charge amplifier.
|
|
Kistler
Models 9039, 9049, 9069 Quartz Torque Sensor
The torque sensor consists of two steel disks,
between which a ring is fitted which contains several shear-sensitive quartz plates. The crystal axes of the quartz plates
are oriented tangentially to the peripheral direction and therefore yield a charge exactly proporational to the applied torque.
|
|
Kistler
Models 9235A, 9235A1 Quartz Strain Transducer
Quartz strain transducer for measuring dynamic
and quasistatic strains on machine components. Main application in industrial monitoring. Mounting by means of a
single fixing screw. Despite its very high sensitivity, the transducer is not damaged when overload occurs. Ground
insulated construction, includes cable and plug.
|
|
Kistler

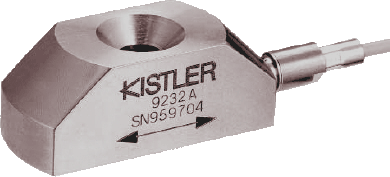

Model 9232A "HighSens" Strain Sensor
Strain sensor for measuring dynamic and
quasistatic forces on stationary and moving machinery. The high sensitivity and acceleration-compensated design of the
sensor allows process monitoring on fast-running process machinery (e.g. presses, automatic assembly machines).
|
|
Kistler
Model 9204B PinSens Force Sensor
PinSens Type 9204B is a simply constructed
force sensor for indirect mold cavity pressure measurement behind a measuring or ejector pin. The diameter of the measuring
or ejector pin must be taken into account in the conversion from for to pressure.
|
|
Kistler

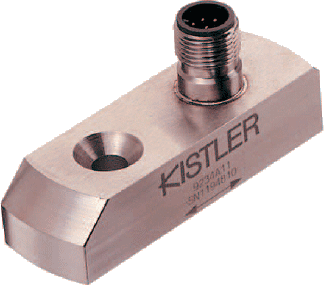

Model 9234A Strain Transmitter
Piezoelectric strain sensor with integrated
charge amplifier. The transmitter is suitable for measuring force-proportional strain on machinery or structural surfaces
(indorect force measurement). Using remote control via a low resistance multicore cable connection, the measuring range can
be adjusted to the optimum signal curve of FS 0 ... +/-10 V.
|
|
|
|
|
Kistler
Models 9081A, 9091A Quartz Load Washers
Thanks to their high rigidity, load washers are suitable for measuring rapidly varying forces. The elastic behaviour of the
object being measured is not altered substantially by this. Quasistatic measurements of several minutes duration are possible,
but not measurements of unlimited duration.
|
|
Kistler

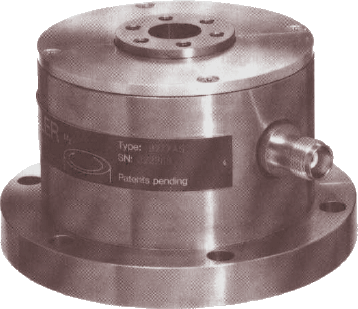

Models 9277A5, 9277A25 Quartz Torque Dynamometer
The compact dynamometer possesses an
especially high sensitivity. The very lightweight top plate supporting the measuring object guarantees a high natural
frequency, enabling torques to be measured on small high-speed motors.
|
|
Kistler
Model 9275 Quartz Torque Dynamometer
Quartz torque dynamometer for measuring
a torque acting around the sensor axis. The compact dynamometer possesses high rigidity and therefore a high natural frequency,
enabling the smallest dynamic changes to be measured in large basic torques.
|
|
|
|
|
|
|
|
Kistler
Models 9243A, 9243A0,8 Quartz Longitudinal Measuring
Pin M10
Piezoelectric sensor for indirect force
measurements in machine structures, tools, etc. in industrial monitoring tasks. The sensor is sensitive to forces acting in
longitudinal direction. It needs for its installation a borehole of the desired mounting depth. The sensor is used to detect
tensile and compressive forces in the machine structure.
|
|
Kistler
Model 9241CA3 Quartz Transverse Measuring Pin
Piezoelectric sensor for indirect force
measurement in machine structures, tools, etc. in industrial monitoring tasks. The front part of the sensor is sensitivie
to transversal forces. Shaped as a cylindrical pin, all it needs for its installation is a 10 mm borehole.
|
|
Kistler

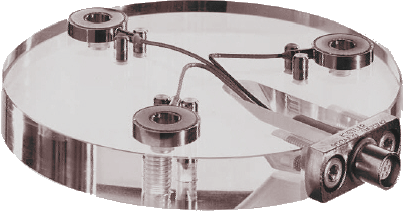

Models 9131AA to 9136AA SlimLine Kit
Ready-to-connect compact assembly kit with
integrated, single-component SlimLine (SLS) force sensors. 2, 3 or 4 ultra-fast quartz sensors are contained in a fixed
connection. Measurement of the total force or partial force per sensor can be made with an appropriate connecting cable.
|
|
Kistler
Models 9130B to 9136B SlimLine Sensor
Quartz sensor with extremely flat design
for measuring dynamic and quasistatic forces. Maximum resolution, high rigidity, extremely small dimensions. Ideal for
installation in structures. Welded construction with integrated connecting cable sealed in the case with non-detachable
plug connection. SlimLine sensors are supplied uncalibrated and must be calibrated after isntallation.
|
|
Kistler
Models 9143B, 9144B, 9145B, 9146B SlimLine Sensors
Quartz sensor with extremely flat design for
measuring dynamic and quasistatic shear forces in one direction. Maximum resolution, high rigidity, extremely small dimensions.
Ideal for installation in structures. Welded construction with integrated connecting cable sealed in the case and with a
selection of plug connectors.
|
|
|
|
|
