Kistler

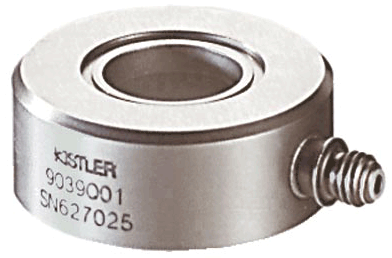

Model 9039 Quartz Torque Sensor
Quartz sensor for measuring a quasistatic or dynamic torque acting around the sensor axis. Thanks to very high rigidity, a high natural frequency of the
measuring device is attained.
|
|
Kistler

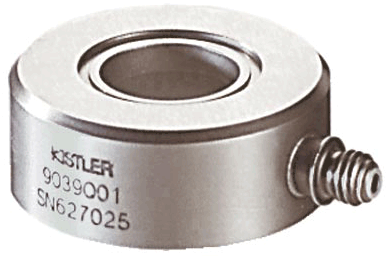

Model 9049 Quartz Torque Sensor
Quartz sensor for measuring a quasistatic or dynamic torque acting around the sensor axis. Thanks to very high rigidity, a high natural frequency of the
measuring device is attained.
|
|
Kistler

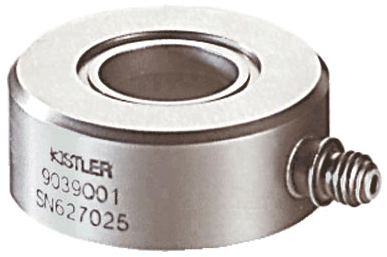

Model 9069 Quartz Torque Sensor
Quartz sensor for measuring a quasistatic or dynamic torque acting around the sensor axis. Thanks to very high rigidity, a high natural frequency of the
measuring device is attained.
|
|
Kistler
Model Kistler Model 9275 Quartz Torque Dynamometer
Quartz torque dynamometer for measuring a torque acting
around the sensor axis. The compact dynamometer possesses
high rigidity and therefore a high natural frequency,
enabling the smallest dynamic changes to be measured
in large basic torques.
|
|
Kistler

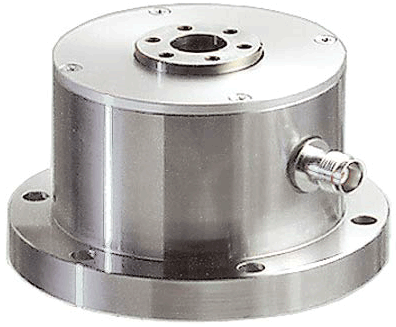

Model 9277A5 Quartz Torque Dynamometer
Quartz torque dynamometer for measuring a torque acting
around the sensor axis. The compact dynamometer possesses
an especially high sensitivity. The very lightweight
top plate supporting the measuring object guarantees
a high natural frequency, enabling torque to be measured
on small high-speed motors.
|
|
Kistler

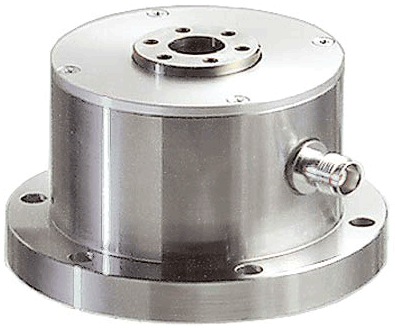

Model 9277A25 Quartz Torque Dynamometer
Quartz torque dynamometer for measuring a torque acting
around the sensor axis. The compact dynamometer possesses
an especially high sensitivity. The very lightweight
top plate supporting the measuring object guarantees
a high natural frequency, enabling torque to be measured
on small high-speed motors.
|
|
Kistler

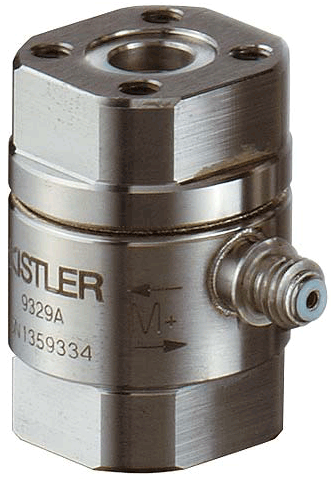

Model 9329A Reaction Torque Sensor
These easy to install piezoelectric reaction torque
sensors are particularly suitable for measuring rapidly
changing torques at non-rotating shafts. Five different
size sensors are available for the measuring ranges
±1 N-m, ±10 N-m, ±200 N-m and ±1,000
N-m.
|
|
Kistler

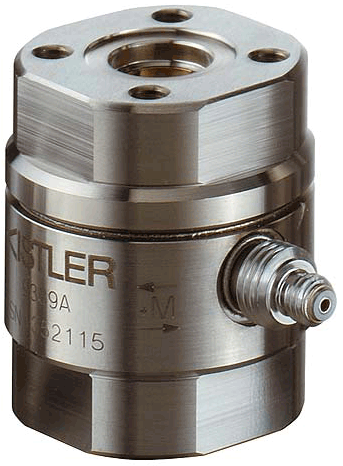

Model 9339A Reaction Torque Sensor
These easy to install piezoelectric reaction torque
sensors are particularly suitable for measuring rapidly
changing torques at non-rotating shafts. Five different
size sensors are available for the measuring ranges
±1 N-m, ±10 N-m, ±200 N-m and ±1,000
N-m.
|
|
Kistler

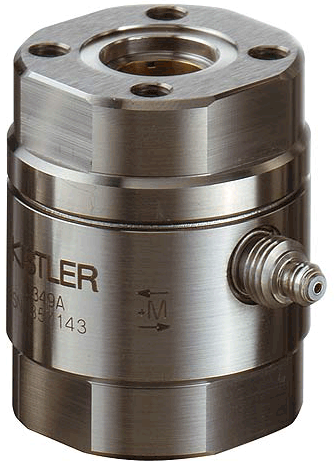

Model 9349A Reaction Torque Sensor
These easy to install piezoelectric reaction torque
sensors are particularly suitable for measuring rapidly
changing torques at non-rotating shafts. Five different
size sensors are available for the measuring ranges
±1 N-m, ±10 N-m, ±200 N-m and ±1,000
N-m.
|
|
Kistler

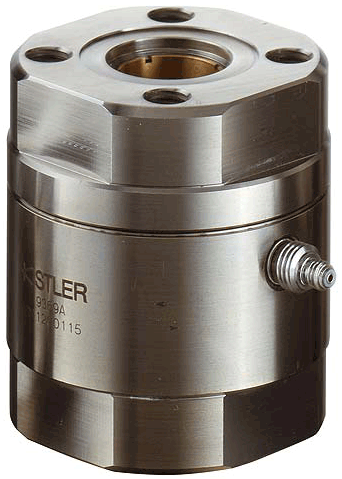

Model 9369A Reaction Torque Sensor
These easy to install piezoelectric reaction torque
sensors are particularly suitable for measuring rapidly
changing torques at non-rotating shafts. Five different
size sensors are available for the measuring ranges
±1 N-m, ±10 N-m, ±200 N-m and ±1,000
N-m.
|
|
Kistler

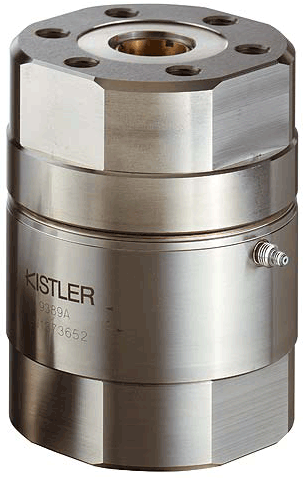

Model 9389A Reaction Torque Sensor
These easy to install piezoelectric reaction torque
sensors are particularly suitable for measuring rapidly
changing torques at non-rotating shafts. Five different
size sensors are available for the measuring ranges
±1 N-m, ±10 N-m, ±200 N-m and ±1,000
N-m.
|
|
Kistler
Model 9345A 2-Component Sensor
This installation-friendly, piezoelectric 2-component
sensor is suitable for measuring push/pull force Fz
and a torque Mz acting on the sensor axis. Its high
resolution allows measurement of the slightest dynamic
changes in large forces and torques at non-rotating
shafts.
|
|
