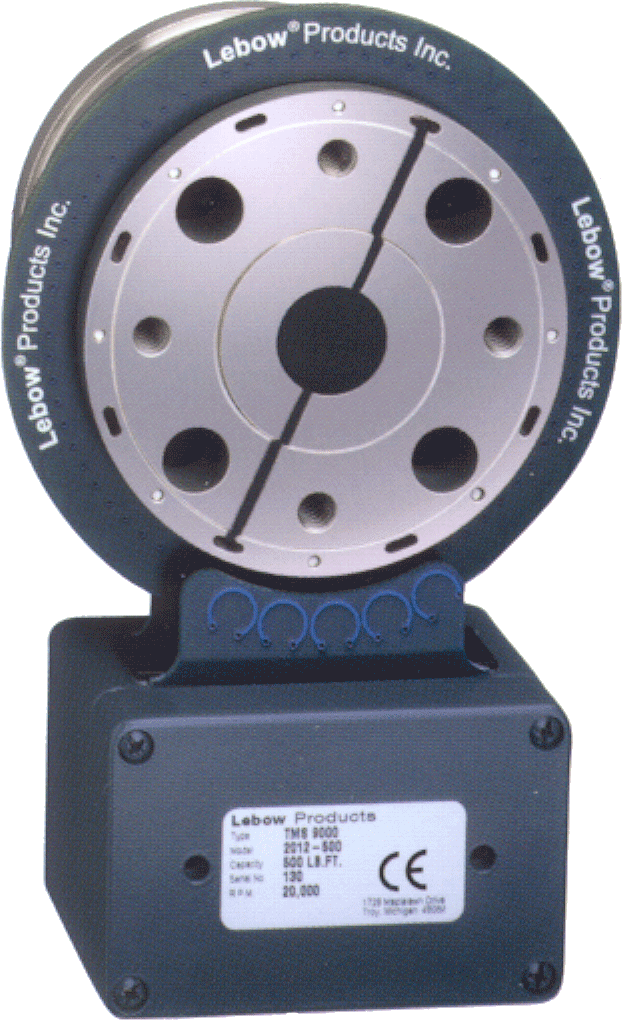

Lebow TMS9000 Series Torque Measurement System
|
Lebow's TMS9000 Torque Measurement System represents an
advanced generation of rotary transformer sensors designed
to operate completely in the digital domain for accurate
measurement and output versatility. The TMS9000 series
physically integrates rotor and telemetry into one element,
with all set-up and output controlled through computer
software, providing expansive testing capabilities.
The TMS9000 series integrates three microchip processors to measure torque signals
and manage the data. The first processor is embedded in the heart of the TMS9000 sensor's rotor and transmits signal
information throught the rotor antenna to the caliper style coupling module. The IP65 coupling module provides power
transmission and signal recovery using BNC connectors and co-axial cable.
Signal information is relayed to the
TMS9000 signal processing module (SPM) housing two micro processors which share the work of data processing and communications.
The first processor verifies incoming data by means of its checksum, then performs scaling in linearization, then passes
the data to the second processor where it is converted to the analog, frequency or digital output format chosen by the
user. Two way communications between the computer and processing module allows the system to be configured, calibrated and
interrogated remotely.
Mechanical Sensor Features:
• No hoop antenna
• System error < 0.05% FS
• High torsional stiffness
• Low rotating inertia
• Vareity of mating flange designs:
- DIN
- SAE
- Flex coupling
- Custom
Electrical Features:
• 19 bit digital telemetry: Resolution up to 100,000 counts
• 3kHz frequency response
• Standard outputs: analog, frequency, digital
• Add on interfaces: ethernet, CANopen, USB, PC104
• True shunt cal feature
• NEMA 4/IP65 rated
