Slip
Ring & Precision Encoder Assemblies Michigan Scientific

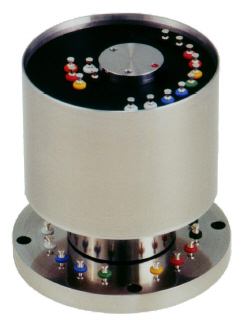

SR10A/E512
Slip
Ring and Precision Encoder Assemblies Michigan Scientific
are used for applications requiring both
a slip ring and a precision encoder.
Slip Ring and Precision Encoder Assemblies are available
in both standard and weatherproof models.
Slip Ring and Precision Encoder Assemblies are designed
to mount on the end of a rotating shaft and make electrical
connection to strain gauges, thermocouples or other rotating
sensors, while simultaneously providing pulses to measure
rotational velocityand angular position.
The slip ring brushes and rings are made of precious metals
which minimize noise andenable the assemblies to be used
for low level instrumentation signals.
Features:
• 10 circuit slip ring with optical encoder
• 2 outputs of 512 ppr in quadrature
• 1 output of 1 ppr for an index pulse
• All pulses accurate within 5 arc-minutes
• Permanently lubricated bearings
• Standard models sealed against dust
• Instrumentation quality rings and brushes
• Weatherproof units available
