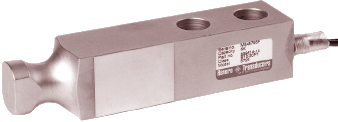

Revere Transducers Model 5723 Single Ended Beam Load Cell
The 5723 is a single ended shear beam type load cell. The link nose is specifically designed for platform scales
that require some movement during the weighing process.
Installation is made easy using a ring that fits over the
link nose and applies the load to the load cell.
Features:
• Capacities: 1 to 10K lbs.
• Sealing: IP67 (DIN 40.050)
• Material: Nickel plated steel
• Link nose design
The 5723 is a single ended shear beam type load cell. The link nose is specifically designed for platform scales
that require some movement during the weighing process.
