 The 640 is an aluminum single point load cell.
Single point load cells eliminate the need for flexures
and levers thus greatly simplifying scale design and reducing cost. The 640 load cell is suitable for applications in
a wide range of packaging machinery, low capacity scales, checkweighers and general process weighing.
Features:
• Certified to OIML R-60, 3000d
• Industry standard mounting configuration
• Moment insensitive, platform size to 350 x 350 mm
• Capacities: 3, 5, 7, 10, 15, 20, 30, 35 kg

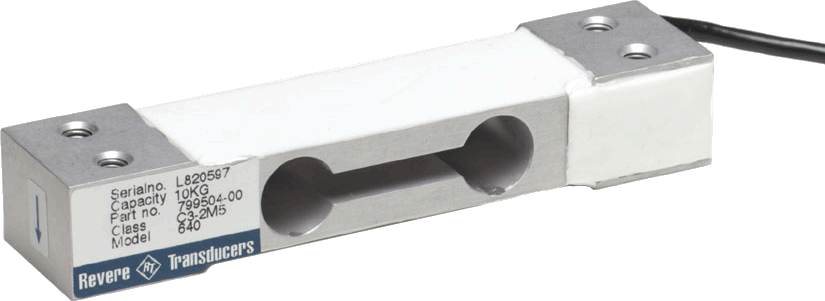

Revere Transducers Model 640 Single
Point Load Cell
 |
