 The 642C is an aluminum single point (moment insensitive) load cell.
Single point load cells eliminate the need for
flexures and levers thus greatly simplifying scale design and reducing cost. The 642C load cell is suitable for use in a wide range
of packaging machinery, low capacity scales, checkweighers and general process weighing.
Full scale sealing ensures this product
can be used in a variety of industrial applications.
Features:
• Silicon sealing protection for damp environments as standard
• Certified to OIML R-60, 3000d
• Industry standard mounting configuration
• Moment insensitive, platform size to 400 x 400 mm
• Capacities: 5 to 100kg

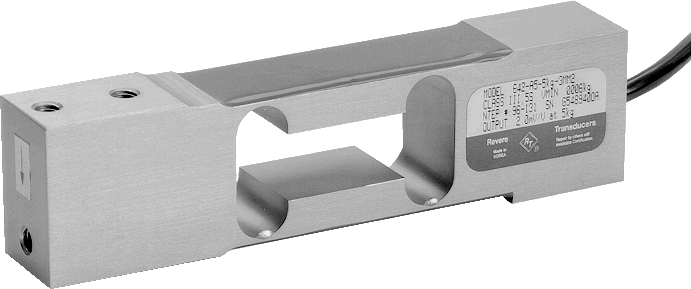

Revere Transducers Model 642C
Single Point Load Cell
 |
