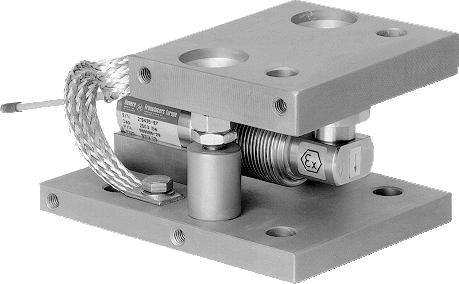

 The 5/9102 self aligning silo mount, combined with the 5/9102 load cell family, provides high accuracy weighing
assemblies suitable for process control, batch weighing, silo/hopper and belt scale applications.
The 5/9102 foot
assembly is an ideal solution for medium capacity belt, pallet and platform scales.
The 5/9102 mount and foot are
based on a rocker pin design, combining excellent load introduction to the transducer with an overall low profile.
Hardened components are used at all load bearing surfaces. The stainless steel construction guarantees long term
reliability, even in the most harsh of environments.
Features:
• Hardened components at all bearing surfaces
• Rocker pin load introduction
• Stainless steel or nickel plated steel versions available
• Built-in horizontal movement control and lift-off protection
• Load cell (re)placement after installation of the mount
• Optional stay rod assembly
• Capacities: 200 to 2,500 lbs.(9102), 50 to 2,500 lbs. (5102)
Revere Transducers
Model 9102 Self Aligning Mounts
 |
