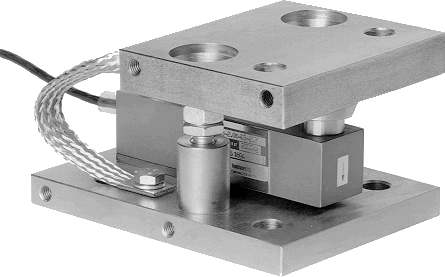

 The 9123/5123 self aligning silo mount, combined with the 9123/5123 load cell family, provides weighing assemblies
suitable for process control, batch weighing, silo/hopper and belt scale applications.
The 9123/5123 foot assembly
is an ideal solution for medium and high capacity platform scales.
The 9123/5123 mount and foot are based on a rocker
pin design, combining excellent load introduction to the transducer with an overall low profile. Hardened components are used
at all load bearing surfaces. The stainless steel construction guarantees long term reliability, even in the most harsh of
environments.
Features:
• Hardened components at all bearing surfaces
• Rocker pin load introduction
• Stainless steel or nickel plated steel versions available
• Built in horizontal movement control and lift-off protection
• Load cell (re)placement after installation of the mount
• Optional stay rod assembly
• Capacities: 0.5 to 5t
Revere Transducers
Model 9123/5123 Self Aligning Accessories
 |
