 The ALC self aligning silo mount, combined with the ALC load cell family, provides an ideal solution for process control, batch
weighing, silo/hoppers and belt scale applications.
The ALC mount permits controlled movement in all directions. The design
allows the cell to be fitted after installation of the mount.
Unless major load movement is anticipated, the ALC mount eliminates
the need for stay rods. An optional stay rod assembly, which can be bolted to the mount when required, is available.
Features:
• Hardened components at all bearing surfaces
• Rocker pin load introduction
• Mechanical protection of the critical load introduction area
• Stainless steel or nickel plated steel versions available
• Built in horizontal movement control and lift-off protection
• Load cell (re)placement after installation of the mount
• Optional stay rod assembly
• Capacities: 250 to 2,000 kg

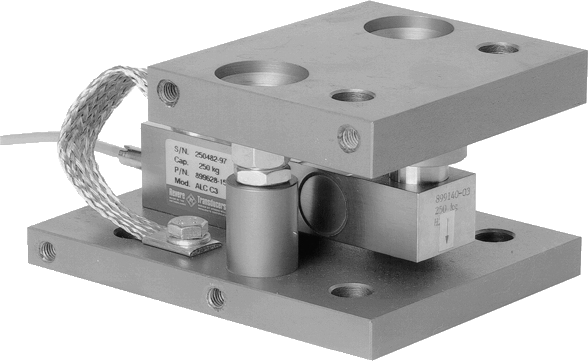

Revere Transducers Model
ALC Self Aligning Mount
 |
