 The HCB is a high performance stainless steel beam type load cell. An integral mounting step removes the need for spacer
plates and ensures optimum "bolt down" conditions.
This product is suitable for small and medium platform scales, hybrid
scales, pallet weighers and process weighing.
The fully welded construction and waterblock cable-entry
ensures that this product can be used successfully in
harsh environments found in the food, chemical and allied
process industries.
Features:
• Low profile, stainless steel construction
• Hermetically sealed, IP66 and IP68
• Certified to OIML R-60, 4000d
• 1000 Ohm bridge impedance
• ATEX certified versions are available for use in potentially explosive atmospheres
• Current calibration output (SC version) ensures easy and accurate parallel connection of multiple load cells
• Integral mounting step
• Capacities: 250 to 5,000 kg

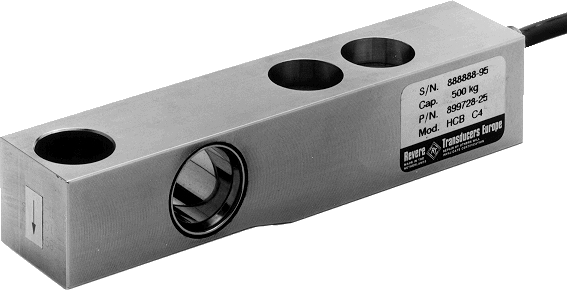

Revere Transducers Model HCB Single
Ended Beam Load Cell
 |
