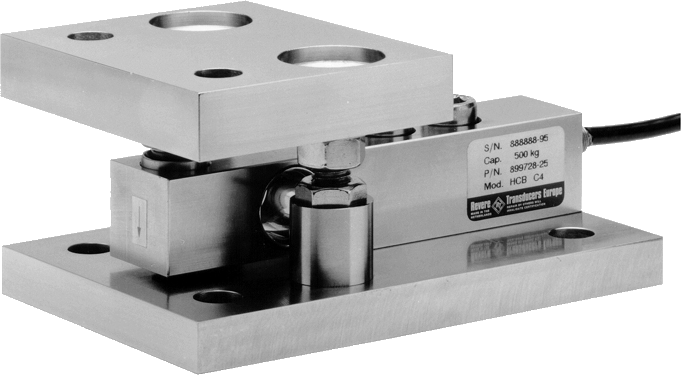

 The HCB self aligning silo mount, together with the HCB
load cell family, are an ideal solution for process control,
batch weighing, silo/hoppers and belt scale applications.
The HCB self aligning foot assembly, is an ideal solution for medium
capacity platform scales and belt scale applications.
The HCB mount and foot are based on a rocker pin design, combining excellent
load introduction to the transducer with an overall low profile. Hardened stainless steel components on all bearing surfaces. The fully
stainless steel construction guarantees long term reliability, even in the most harsh of environments.
Features:
• Hardened components at all load bearing surfaces
• Rocker pin load introduction
• Stainless steel construction
• Built-in horizontal movement control and lift-off protection
• Load (re)placement after installation of the mount
• Capacities: 0.25 to 5t
Revere Transducers
Model HCB Self Aligning Accessories
 |
