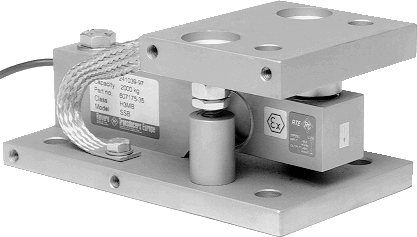

 The SSB self aligning silo mount, combined with the SSB load cell family, provides weighing assemblies suitable for process
control, batch weighing, silo/hopper and belt scale applications.
The SSB foot assembly is an ideal solution for medium capacity
belt, pallet and platform scales.
The SSB mount and foot are based on a rocker pin design, combining excellent load introduction
to the transducer with an overall low profile. Hardened components are used at all load bearing surfaces. The stainless steel construction
guarantees long term reliability, even in the most harsh of environments.
Features:
• Hardened components at all bearing surfaces
• Rocker pin load introduction
• Stainless steel or nickel plated steel versions available
• Built in horizontal movement control and lift-off protection
• Load cell (re)placement after installation of the mount
• Optional stay rod assembly
• Capacities: 500 to 5000kg
Revere Transducers
Model SSB Self Aligning Accessories
 |
