Revere Transducers Double Ended Beams

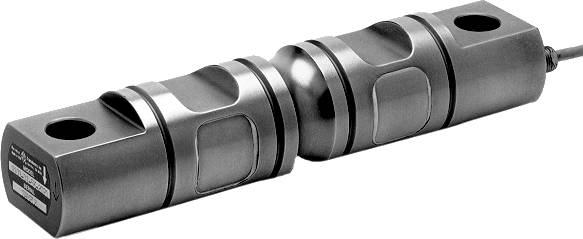

Model 5103/9103 Double Ended Beam Load Cell The 5103/9103 are double ended, center loaded shear beam type load cells. The 5103 is nickel plated alloy steel while the 9103 is stainless steel.

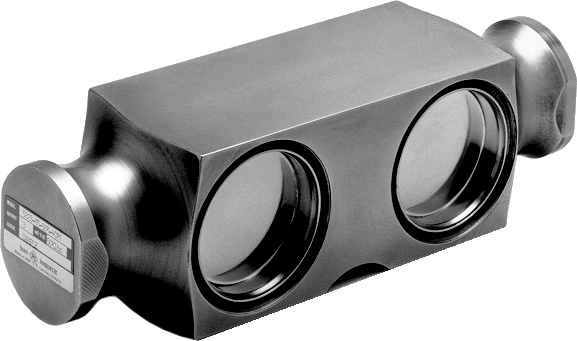

Model 5223 Double Link Beam Load Cell The 5223 is a hermetically sealed, end loaded, center supported double ended shear beam.

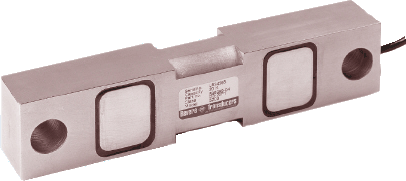

Model 5203 Double Ended Beam Load Cell The 5203 is a Double Ended Shear Beam type load cell.

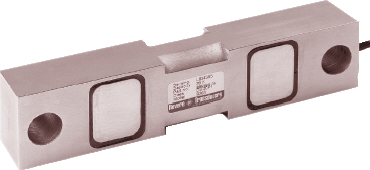

Model 9203 Double Ended Beam Load Cell The 9203 is a stainless steel Double Ended Shear Beam type load cell.

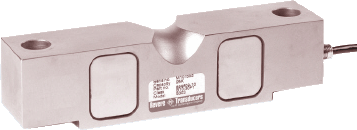

Model 5303 Double Ended Beam Load Cell The 5303 is a link loaded Double Ended Shear Beam type load cell, specifically designed for truck scales, track scales and high capacity weighing applications.

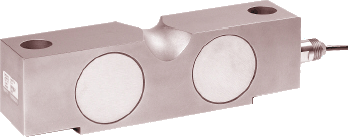

Model 9303 Double Ended Beam Load Cell The 9303 is a link loaded Double Ended Shear Beam type load cell, specifically designed for truck scales, track scales and high capacity weighing applications.

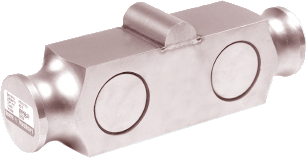

Model 9323 Double Ended Beam Load Cell The 9323 is a Double Ended Beam type load cell. A reliable sealing and mechanical protection of the strain gauge area is ensured by the use of potting compound with a metal cover.
Model 9403 Double Ended Beam Load Cell The 9403 is a Double Ended Beam type load cell with a low profile design, specifically designed for low capacity small platforms and applications where space is limited or special mounting required.

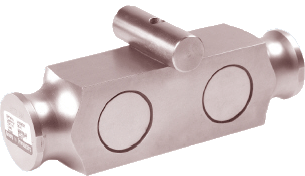

Model 9423 Double Ended Beam Load Cell The 9423 is a Double Ended Beam type load cell. A reliable sealing and mechanical protection of the strain gauge are is ensured by the use of potting compound with a metal cover.

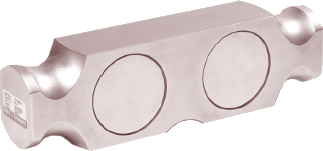

Model 9803 Double Ended Beam Load Cell The 9803 is a Double Ended Beam type load cell. A reliable sealing and mechanical protection of the strain gauge area is ensured by the use of potting compound with a metal cover.

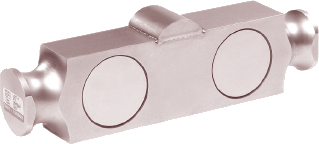

Model 9903 Double Ended Beam Load Cell The 9903 is a Double Ended Beam type load cell with a low profile design, specifically designed for applications where space is limited or special mounting required.
