 Load
Cell Summing Transmitter Sensortronics Model 2520 is used
for precision weighing with load cells, process control
add-on loops applications and can be used with all types
of low output sensors.
Load Cell Summing Transmitter Sensortronics Model 2520
features summing of up to 4 load cells, complete strain
gauge bridge signal conditioner, high gain, low drift,
low temperature coefficient precision amplifiers with
low input current (10 pA typical).
Load Cell Summing Transmitter Sensortronics Model 2520
wide input range from 5 mV to 50 mV full scale with a
4-20 mA or 0-20 mA output and is capable of driving 1,000
Ohm loop. They feature 2 to 10 V or 0 to 10 V output and
excitation supply capable of driving four load cells.
Load Cell Summing Transmitter Sensortronics Model 2520
is both AC & DC power capability with surge voltage suppression
and input, output and power three way isolation. NEMA
4 enclosure for use in rugged environments.

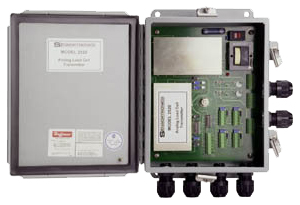

Load Cell Summing Transmitter
Sensortronics Model 2520
|
