Tension
Link with Pivot Ends are superior performance sensors,
for use in weighing and force measuring applications.
Tension Link with Pivot Ends sensing element consists
of a strain gauge bridge circuit installed in a small
hole along its longitudinal axis.
This unique arrangement provides a most effective means
for the protection and sealing of the strain gauge circuit
while minimizing the adverse effects of extraneous torsional
and flexural loads.
Tension Link with Pivot Ends can be suitably modified
for underwater use, at hydrostatic pressure levels up
to and exceeding 10,000 psi.
Tension Link with Pivot Ends Standard load ranges: 1,000
lbs. to 400,000 lbs., higher loads are custom designed.
Strainsert

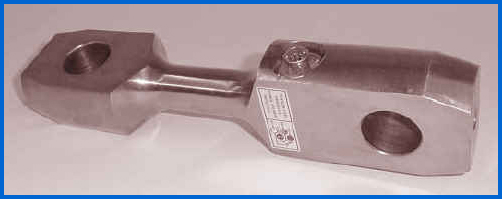

Force/Load Sensing Tension Links With Pivot Ends
