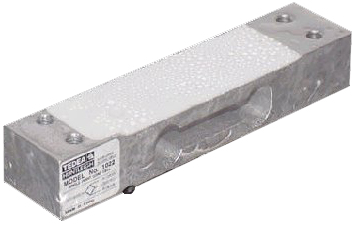

  Low Capacity Single Point Load Cell Tedea-Huntleigh Model 1022
Low Capacity Single Point Load Cell Tedea-Huntleigh Model 1022 is a low profile off center load cell designed for direct mounting in low cost weighing platforms.

Low Capacity Single Point Load Cell has asmall physical size, combined with high accuracy and anodized aluminum construction, makes this low cost Load Cell ideally suited for retail, bench and counting scales where savings in parts and labor due to simpler scale construction can be made. The two additional sense wires feed back the voltage reaching the Low Capacity Single Point Load Cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.

Features:

Capacities: 3 - 35 Kg
Only 22 mm high
Anodized aluminum construction
6 sire (sense circuit)
Single point 350 x 350 platform
IP66 protection
NTEP 5000d approved
