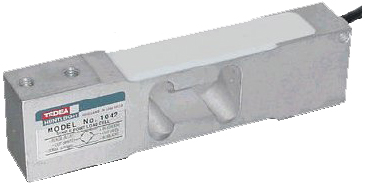

1-100
Kg Capacity Single Point Load Cell Tedea-Huntleigh Model
1042 is a low profile two-beam single point load cell
designed for direct mounting
of low cost weighing platforms, ideally suited for retail,
bench and counting scales.
Available in anodized aluminum, this high-accuracy 1-100
Kg Capacity Single Point Load Cell Tedea-Huntleigh Model
1042 is approved to NTEP 5000 divisions and other stringent
approval standards, including OIML R60 C4 and OIML R60
C3, 30% utilization. A special humidity-resistant, IP66,
protective coating assures long term stability over the
entire compensated temperature range. Interchangeable,
replacement to industry standard Models 1040, 1041, 1140
(stainless). Tedea-Huntleigh, with models ranging from
1 to 50,000 Kg capacities, is the world's largest manufacturer
of precision load cells.
Features:
• Anodized aluminum construction
• 6 wire (sense circuit)
• Single point 16 inches x 16 inches platform
• IP66 protection
• NTEP approved 5000 divisions
• OIML approved 4000 divisions
1-100 Kg Capacity Single Point
Load Cell Tedea-Huntleigh Model 1042
|
