High
Accuracy Load Cell Off Center Low Profile Tedea-Huntleigh
Model 1240
High

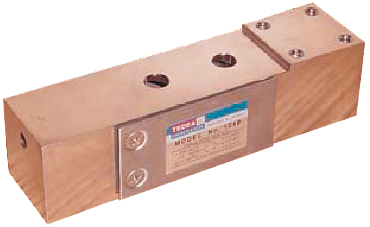

Accuracy Load Cell Tedea-Huntleigh Model 1240 is a low
profile off-center load cell.
High Accuracy Load Cell Tedea-Huntleigh Model 1240 is
one of the most compact designs available for these capacities
which makes it especially well suited to scales which
weigh people as well as high capacity industrial applications
where space is limited.
This High Accuracy Load Cell Tedea-Huntleigh Model 1240
is Factory Mutual Approved. When operated at constant
temperature, all load cells offer 0.02% combined error
performance regardless of accuracy class. Three beam construction
makes the load cell highly immune to side forces and mounting
imperfections. Stainless steel construction and a unique
humidity resistant protective coating assures long-term
stability even under harsh environment and extreme temperatures.
Optional Sylgard encapsulation is available for applications
requiring washdown protection.
Features:
• 200 and 250 Kg capacities
• Stainless steel construction
• Combined error only 0.02%
• Unique humidity-resistant protective coating
• 6 wire (sense) circuit
• Low profile - 1.6" (40 mm) in height
• 4 mounting holes for added stability
• Maximum safe moment to 30 X rated capacity (kg-cm)
