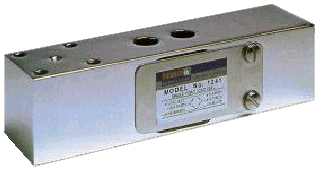

Load Cell Tedea-Huntleigh Model 1241 Low Profile Off-Center
Beam
Load Cell Tedea-Huntleigh Model 1241 is a low profile,
three beam, off-center load cell designed for direct mounting
to a weighing platform, hanging scale or other eccentric
loading applications.
Beam Load Cell Tedea-Huntleigh Model 1241 is one of the
most compact designs available for these capacities which
makes it especially well suited to scales which weigh
people as well as high capacity industrial applications
where space is limited.
This high accuracy Beam Load Cell Tedea-Huntleigh Model
1241 is Factory Mutual and OIML Class C3 Approved. When
operated at constant temperature, all load cells offer
0.02% combined error performance regardless of accuracy
class. A unique humidity resistant protective coating
assures long-term stability even under harsh environment
and extreme temperatures. Optional Sylgard encapsulation
is available for applications requiring washdown protection.
Features:
• Capacities from 50 to 250 Kg
• Aluminum construction
• Combined error only 0.02%
• Unique humidity-resistant protective coating
• 6 wire (sense) circuit
• Low profile - 1.6" (40 mm) in height
• 4 mounting holes for added stability
• Maximum safe moment to 30 X rated capacity (kg-cm)
