Three

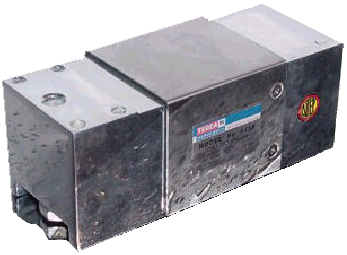

Beam High Capacity Off-Center Load Cell Tedea-Huntleigh
Model 1250
Three
Beam High Capacity Off-Center Load Cell Tedea-Huntleigh
Model 1250 is a high performance, high-capacity, off-center
load cell designed for use in larger platform, conveyors,
hoppers or other industrial applications.
Three Beam High Capacity Off-Center Load Cell Tedea-Huntleigh
Model 1250 combines accuracy with ruggedness and versatility.
The Three Beam High Capacity Off-Center Load Cell Tedea-Huntleigh
Model 1250 is Factory Mutual, NTEP and OIML Class C3 approved.
When operated at constant temperature, all load cells
offer 0.02% combined error performance regardless of accuracy
class.
Three beam construction makes the load cell highly immune
to side forces and mounting imperfections. A built-in
overload stop guarantees mechanical protection against
static overloading. A unique humidity-resistant protective
coating assures long term stability even under harsh environments
and extreme temperatures. Optional Sylgard encapsulation
is available for applications requiring washdown protection.
Features:
• Capacities from 50 to 1,000 Kg
• Combined error only 0.02%
• Unique humidity-resistant protective coating
• 6 wire (sense) circuit
• 5000 division NTEP approved
• Built-in overload stop
• Low sensitivity to side loading
• Maximum safe moment to 30 X rated capacity (kg-cm)
