Aluminum

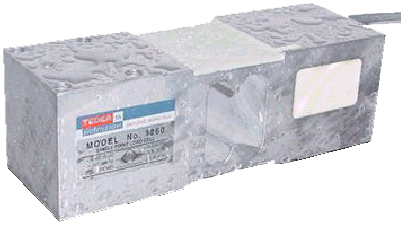

Single Point Load Cell Tedea-Huntleigh Model 1260
Aluminum
Single Point Load Cell Tedea-Huntleigh Model 1260 is designed
for direct mounting of large platforms.
The rugged construction of the Aluminum Single Point Load
Cell Tedea-Huntleigh Model 1260 offers high immunity to
side forces making it suitable for a wide range of weighing
applications, including bench scales, check weighing and
process weighing. A special humidity resistant coating
assures long term stability over the entire compensated
temperature range. The two additional sense wires feed
back the voltage reaching the load cell. Complete compensation
of changes in lead resistance due to temperature change
and/or cable extension, is achieved by feeding this voltage
into the appropriate electronics.
Features:
• Capacities: 50 - 635 Kg
• Aluminum construction
• Single point 600 x 600 mm platform
• 6 wire (sense) circuit
• IP66 protection
• OIML R60 and NTEP approved
Aluminum
Single Point Load Cell Tedea-Huntleigh Model 1260 is designed
for direct mounting of large platforms.
