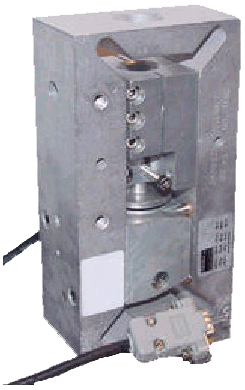

Damped
Load Cell Tedea-Huntleigh Model 1410 represents a radical
new concept in load design, which alleviates many of the
problems and limitations encountered when conventional
load cells are used in rotary weighing machines. Due to
a patented damping system, typical settling times of 700
ms are dramatically reduced to less than 300 ms (depending
upon conditions) significantly reducing cycle times and
increasing throughput capabilities.
The uniquely rugged construction of the Damped Load Cell
Tedea-Huntleigh Model 1410 is very resistant to side loads
and can therefore withstand bottle jams and other mishaps.
Side loads of up to 300kg have been tested with no damage
and no significant zero change.
Features:
• Designed specifically for use in rotary filling machines
• Short settling times
• High resistance to side loads
• Effective isolation of base vibration
• Centrifugal forces do not affect accuracy
• Alternative mounting arrangements available
