Shear
Beam Load Cell Tedea-Huntleigh 3400 Series is a highly
accurate, low cost shear beam.
Shear Beam Load Cell Tedea-Huntleigh 3400 Series is ideally
suited for low profile platforms, pallet truck weighers,
tanks and silos.
This high accuracy Shear Beam Load Cell Tedea-Huntleigh
3400 Series is environmentally protected to IP67 and is
Factory Mutual, NTEP and OIML Class C3 approved. When
operated at constant temperature, all load cells offer
0.02% combined error performance regardless of accuracy
class. Choose between rugged stainless steel or nickel
plated tool steel construction, and threaded or thru-hole
loading configurations. For tank and hopper mounting applications,
Tedea-Huntleigh offers the Model
9100 Series. These mounting assemblies simplify mounting
while increasing system accuracy.
Features:
• Capacities from 1,0000 to 10,000 lbs.
• Electroless nickel plated steel or stainless steel construction
• Combined error only 0.02%
• Through-hole loading (3410/3420)
• Threaded-hole loading (3411/3421)
• 6 wire (sense) circuit
• 5000 division NTEP approved
• IP67 environmental protection
• Industry standard size and shape

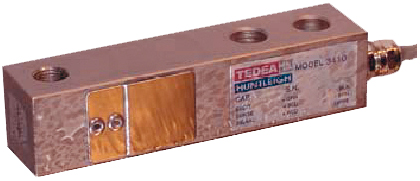

Shear Beam Load Cell Tedea-Huntleigh
3400 Series
|
