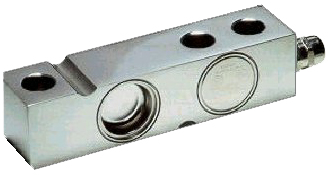

Hermetically Sealed Shear Beam Load Cell Tedea-Huntleigh
Model 3510
Hermetically
Sealed Shear Beam Load Cell Tedea-Huntleigh Model 3510
is designed for the ultimate protection necessary for
today's hostile environments.
Hermetically Sealed Shear Beam Load Cell Tedea-Huntleigh
Model 3510 is ideally suited for low profile platforms,
pallet truck weighers, tanks and silos.
This high accuracy Hermetically Sealed Shear Beam Load
Cell Tedea-Huntleigh Model 3510 is hermetically sealed
to IP68 and is OIML Class C3 approved. When operated at
constant temperature, all load cells offer 0.02% combined
error performance regardless of accuracy class. Hermetically
sealed, stainless steel construction assures long-term
stability even under harsh environments and extreme temperatures.
The slotted profile enables manufacturers to easily position
the load cell without resorting to the use of mounting
plates. For tank or hopper mounting applications, Tedea-Huntleigh
offers the Model 9100
Series Cellmates. Cellmates simplify mounting while
increasing system accuracy.
Features:
• Capacities from 500 to 5,000 Kg
• Stainless steel construction
• Combined error only 0.02%
• Hermetically sealed to IP68
• 6 wire (sense) circuit
• Interchangeable with Model 3410 and other industry
standard configuration load cells
• Fully welded protection
• Hostile environment capability
