Load

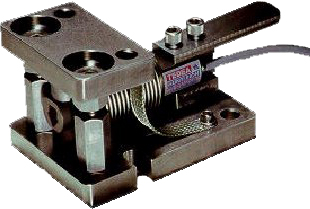

Cell Mounting Assembly Tedea-Huntleigh Cellmate is a superior
load cell mounting assembly that dramatically simplifies
load cell installation. A perfect solution to vessel weighing
in dairies, chemical, bottling and food processing plants,
stainless steel Cellmate mounts can be used on tanks,
silos and many other weighing vessels.
Load Cell Mounting Assembly Tedea-Huntleigh Cellmate family
of mountings also provides an unparalleled degree of protection
for load cells and maintains a permanent load cell safety
system, reducing load cell damage and plant down-time.
Features:
• Simplifies load cell installation on tanks, silos and
other weighing vessels.
• Accepts load cells ranging in capacity from 11 lbs.
to 11,000 lbs. (5 to 5,000 Kg)
• Permanent protection against load cell damage
• Built in jacking points permit installation with or
without load cells in place
• Grounding strap provides low resistance path to minimize
electrical potentials
• Cable gland protector prevents cable damage
• Provision for thermal expansion, contraction and lift-off
due to winds or collision
Load Cell Mounting Assembly
Tedea-Huntleigh Cellmate
|
