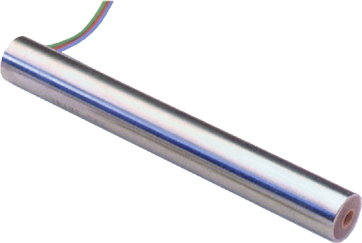

Linear
Velocity Transducer Trans-Tek Series 100 provides a simple
yet accurate means of measuring linear velocity.
Linear Velocity Transducer Trans-Tek Series 100 consist
of high coercive force permanent magnet cores which induce
sizable DC voltage while moving concentrically within
shielded coils. Basic design of the Linear Velocity Transducer
Trans-Tek Series 100 permits operation without external
excitation while the generated output voltage varies linearly
with core (magnet) velocity.
Linear Velocity Transducer Features:
• No excitation required
• Generates a DC output voltage directly proportional
to linear velocity
• High sensitivity
• Push-pull or single-ended output
• Magnetically shielded windings
• Simple, rugged construction
• Color-coded, Teflon-insulated leads
• No springs, levers, bearings or other delicate mechanical
mechanisms
Linear Velocity Transducer Typical Applications:
• Structural and machinery vibration
• Hydraulic press speed
• Fuel control systems
• Servo velocity feedback
