Displacement

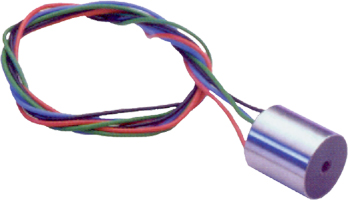

Transducers DC-DC Trans-Tek Series 240 are an integrated
package consisting of a precision linear variable differential
transformer, a solid state oscillator, and a phase-sensitive
demodulator.
Displacement Transducers DC-DC Trans-Tek Series 240 are
designed for excellent linearity, infinite resolution,
and high sensitivity. Input and output circuits are electrically
isolated from each other and from the coil assembly housing,
making them usable directly in floating or ground return
systems. DC indicators, recorders, and control systems
can usually be driven directly by the large DC output.
The core, when displaced axially within the coil assembly,
produces a voltage change in the output directly proportional
to the displacement.
All materials have been selected carefully to achieve
optimum performance. The stainless steel housings, coil
assembly, oscillator-demodulator and Teflon-insulated
leads are carefully encapsulated in epoxy resin. Oscillator-demodulator
components are individually selected to assure accuracy
and reliability.
Displacement Transducers Features:
• DC in, DC out
• Adjustable scale factor
• No phasing, harmonic or quadrature null problems
• Polarity protected
• Zero hysteresis
• Stepless output
• Excellent repeatability
• High output
• Up to 8" range
• Extreme linearity
• Fast response
• Light weight
• Magnetically shielded
Displacement Transducers DC-DC
Trans-Tek Series 240
|
