Strain

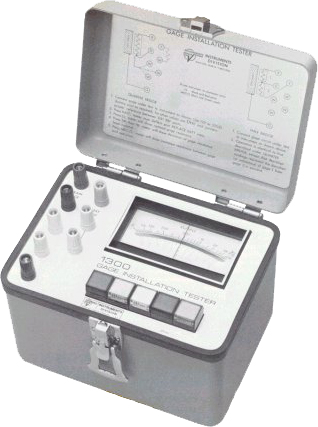

Gage Installation Tester Vishay Model 1300 is
used to verify the electrical quality of an installed
strain gage, as well as the complete gage installation,
including leadwires. A carefully selected individualized
test voltage is used for each measurement mode.
Operation is by push buttons.
Strain Gage Installation Tester Features:
• Reads with the push of a button, no warm-up.
• Reads insulation resistance (leakage) to 20,000
Megohms with 15 Vdc.
• Measures deviation of installed gauge resistance
from precise standards to a resolution of 0.02
percent.
• Ohmmeter scale for troubleshooting questionable
installations.
• Verifies the complete gauge circuit including
leadwires.
