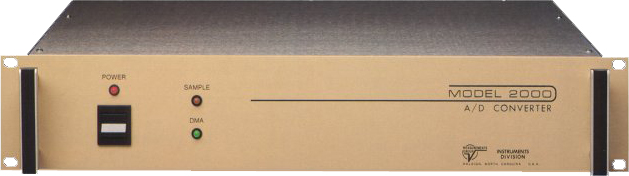

Analog-to-Digital Converter Module Vishay Model 2000
Analog-to-Digital
Converter Module Vishay Model 2000 is programmable
with simple commands to a GPIB (IEEE-488) interface.
It accepts up to 16 analog signals of +/-10Vdc
full scale.
The 14-bit successive approximation ADC samples
the inputs at one of six programmable rates up
to 50,000 readings per second. ASCII or binary
format.
In the synchronous mode, used for more rapid transfers,
data is sent in binary format. Mountable in a
standard 19" (483mm) equipment rack.
Analog-to-Digital Converter Module Vishay Model
2000 is shipped with ready to use software for
data acquisition, storage, and presentation, as
well as the additional computer code needed for
utilizing the hardware with a second-party and
owner developed software.
